Oil Pressure Gauge Retrofit M112 M113 M156 M157

Oil Pressure Gauge [ Wired ] System $329.99

Inventory Status: In stock, ships in 3 – 5 days.

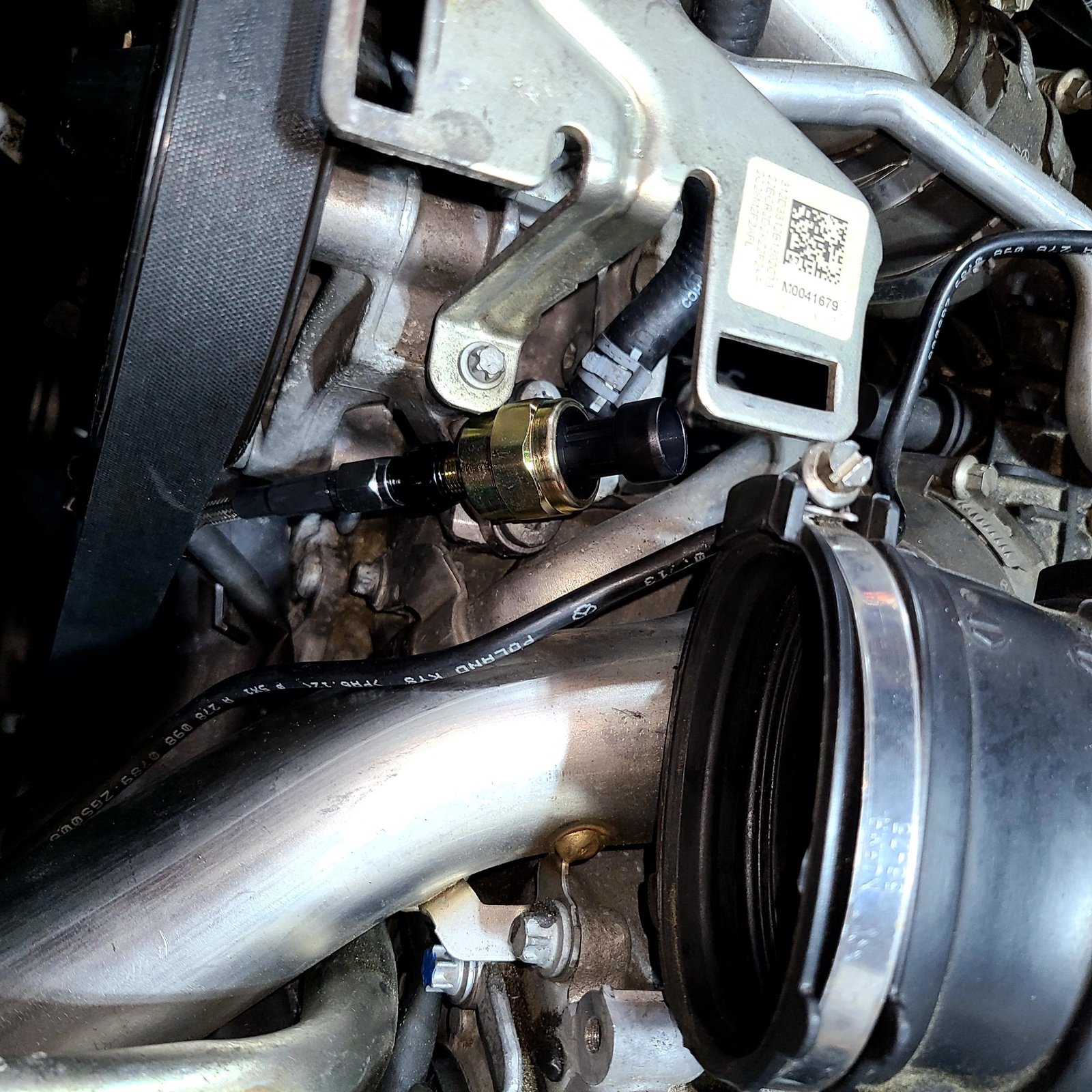

This is suitable for use to tap into oil pressure housing, cylinder head, or block access (M112/M113/M113K/M156/M157). Allows the use of an oil pressure gauge within your Mercedes-Benz cabin. This kit includes wiring extension with add-a-fuse tap. Use a switched 12V access (Max 15A native 3A piggyback for gauge). Wires are 20AWG with high-quality OEM style connectors. Open the box and install!

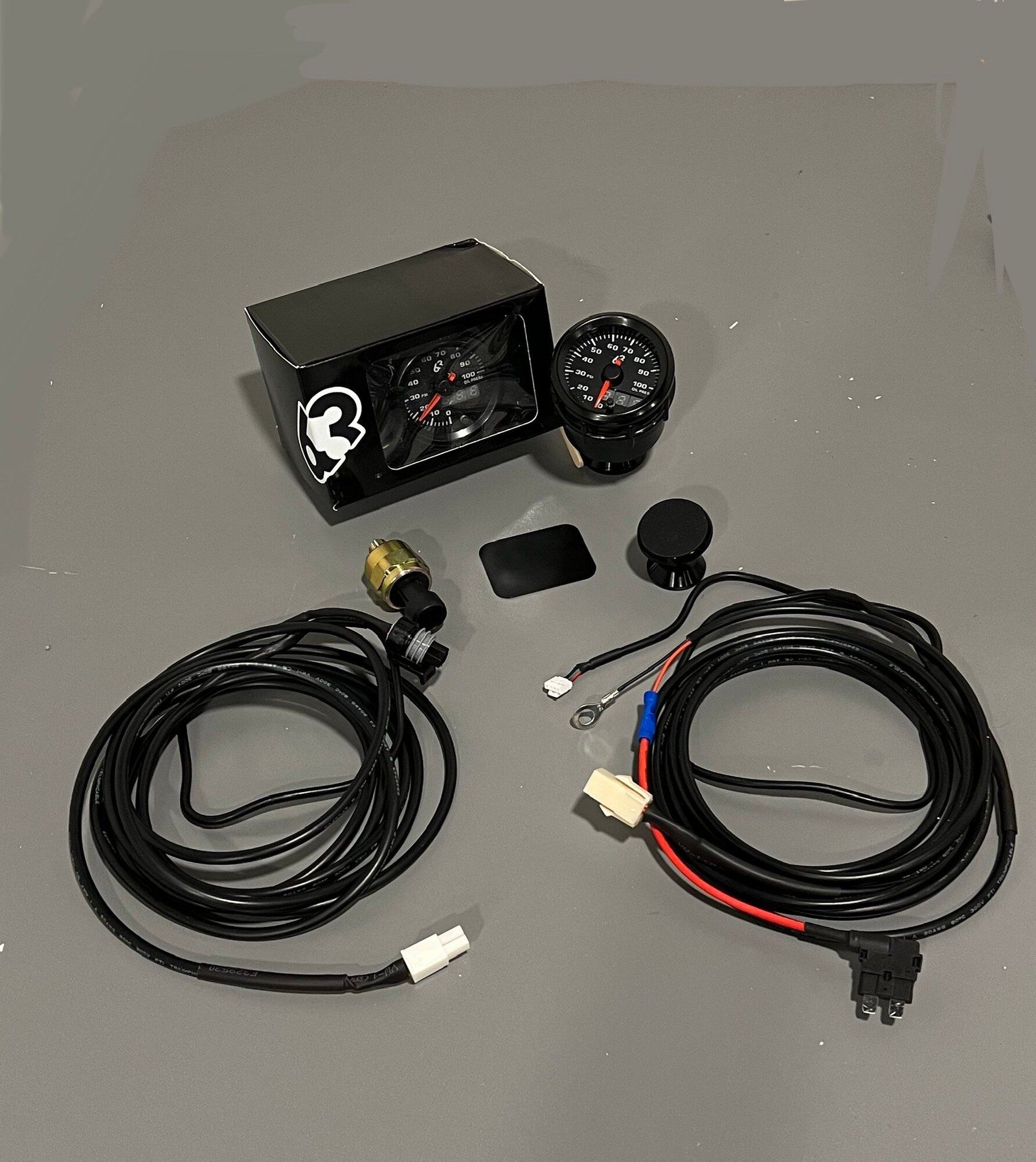

Includes:

• Gauge with Oil Housing Tap Kit

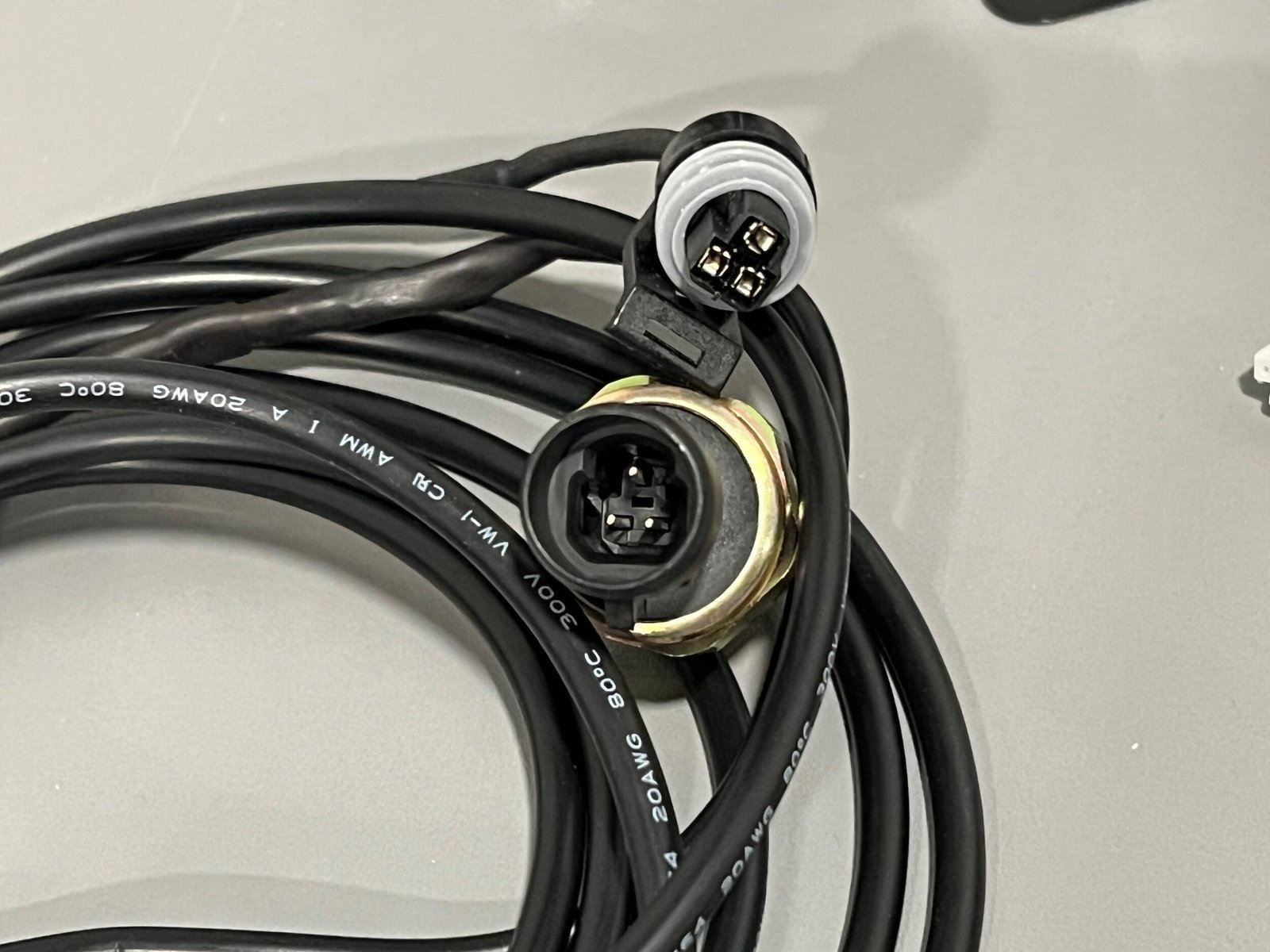

• 1/8” NPT Oil Pressure Sending Unit;

• Mounting magnetic bracket;

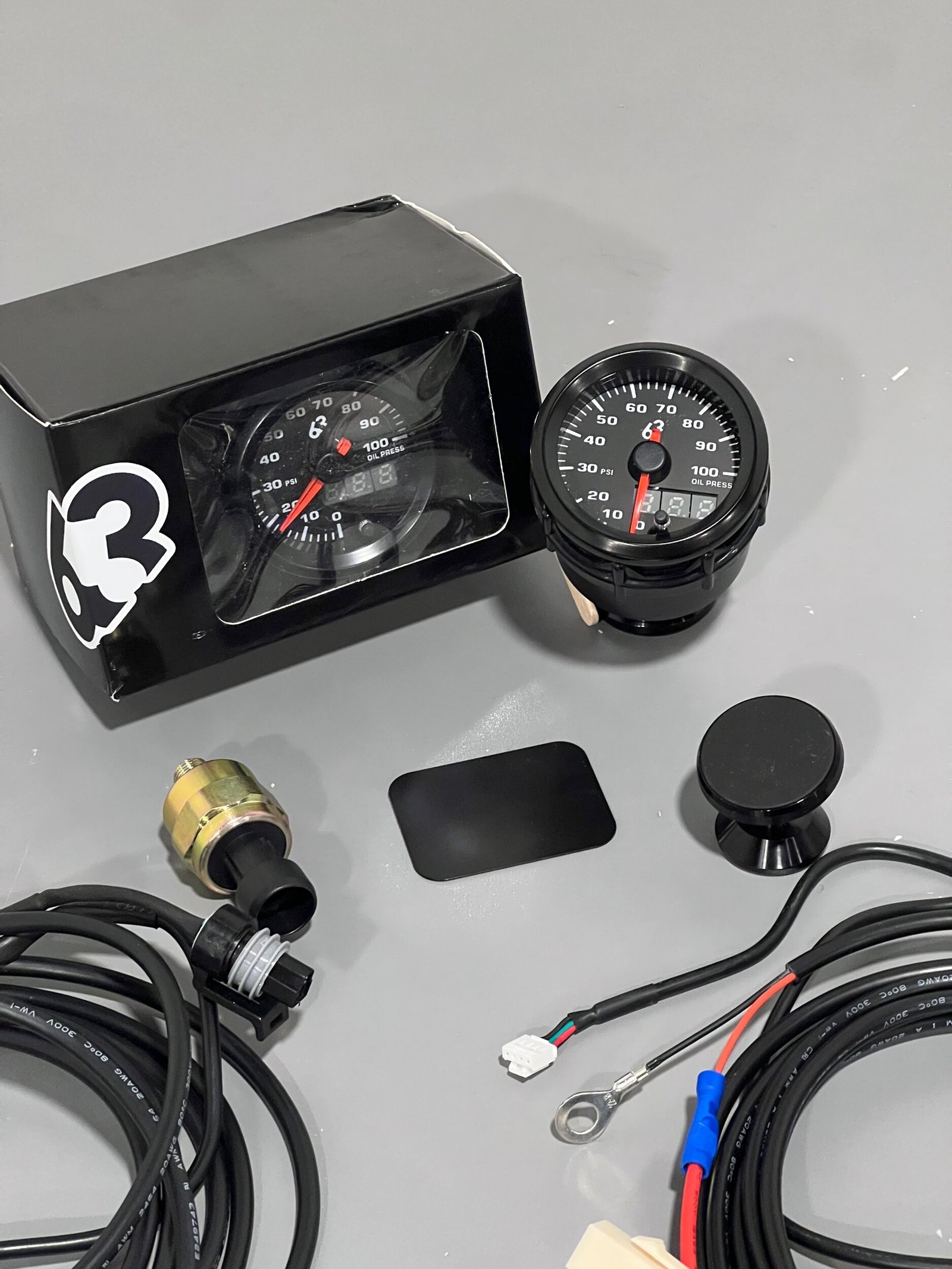

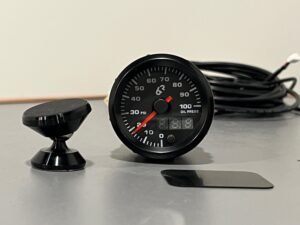

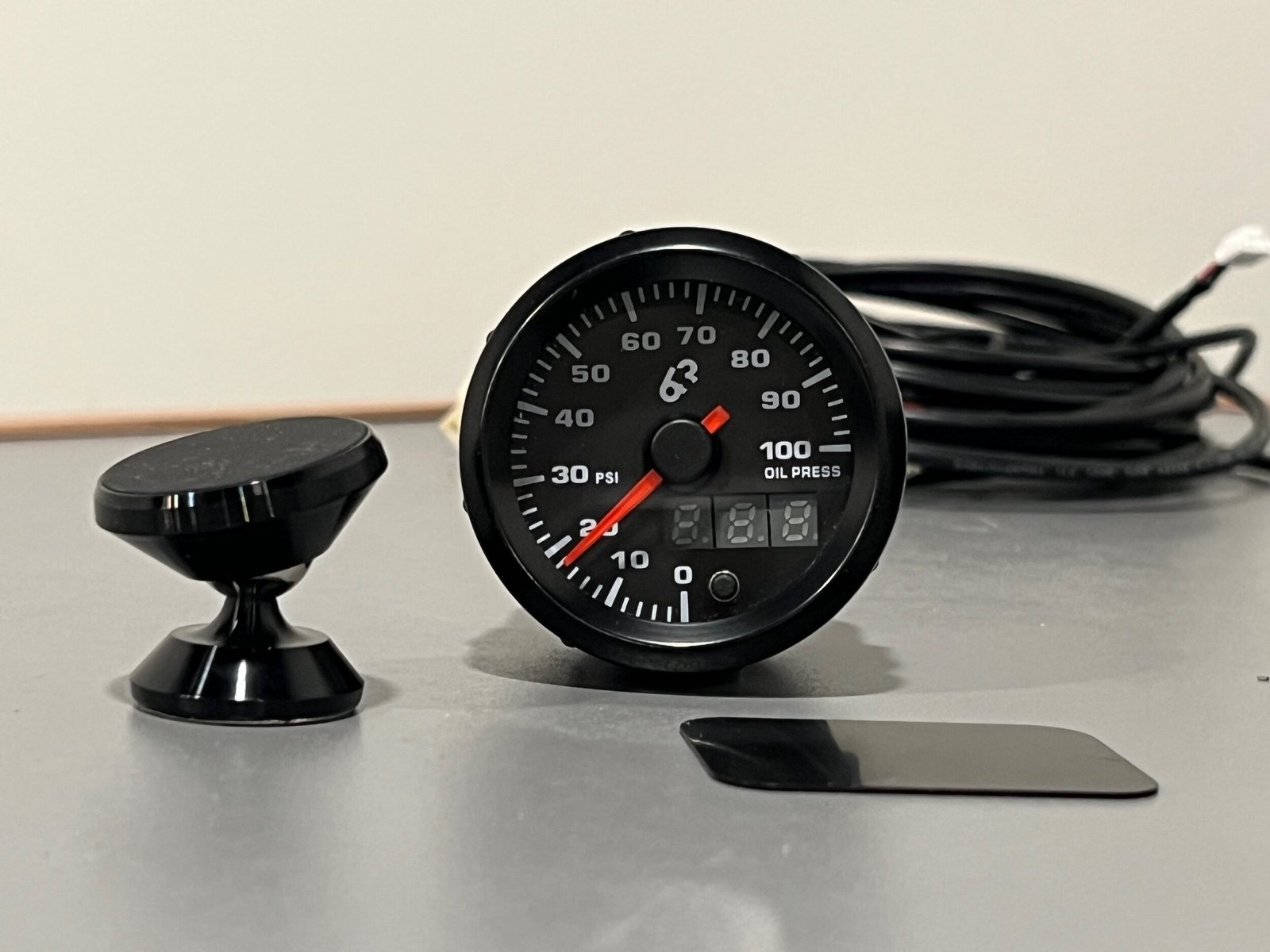

• 52 mm oil pressure gauge with dial and digital read out;

• Add a circuit with 3 amp fuse;

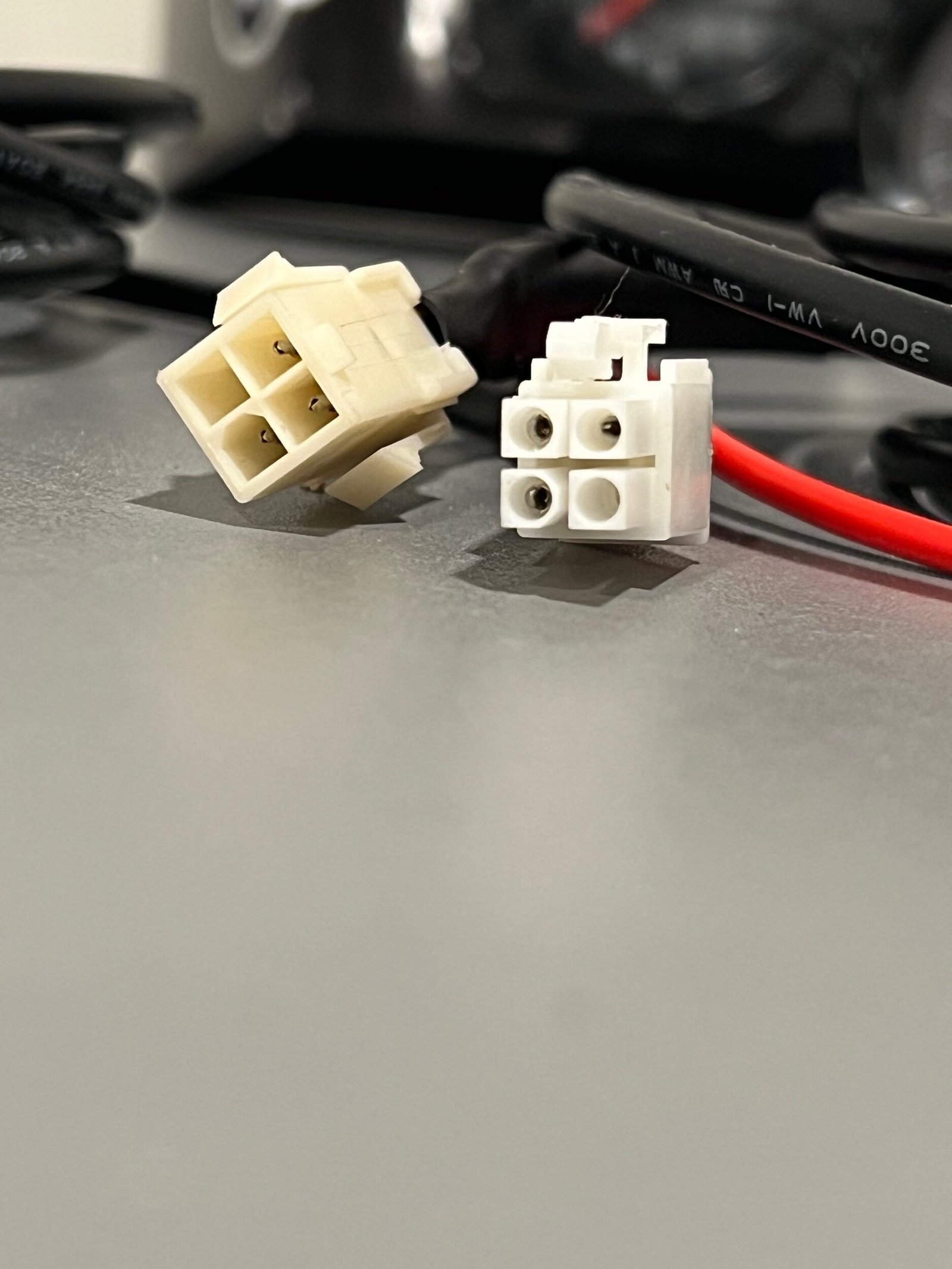

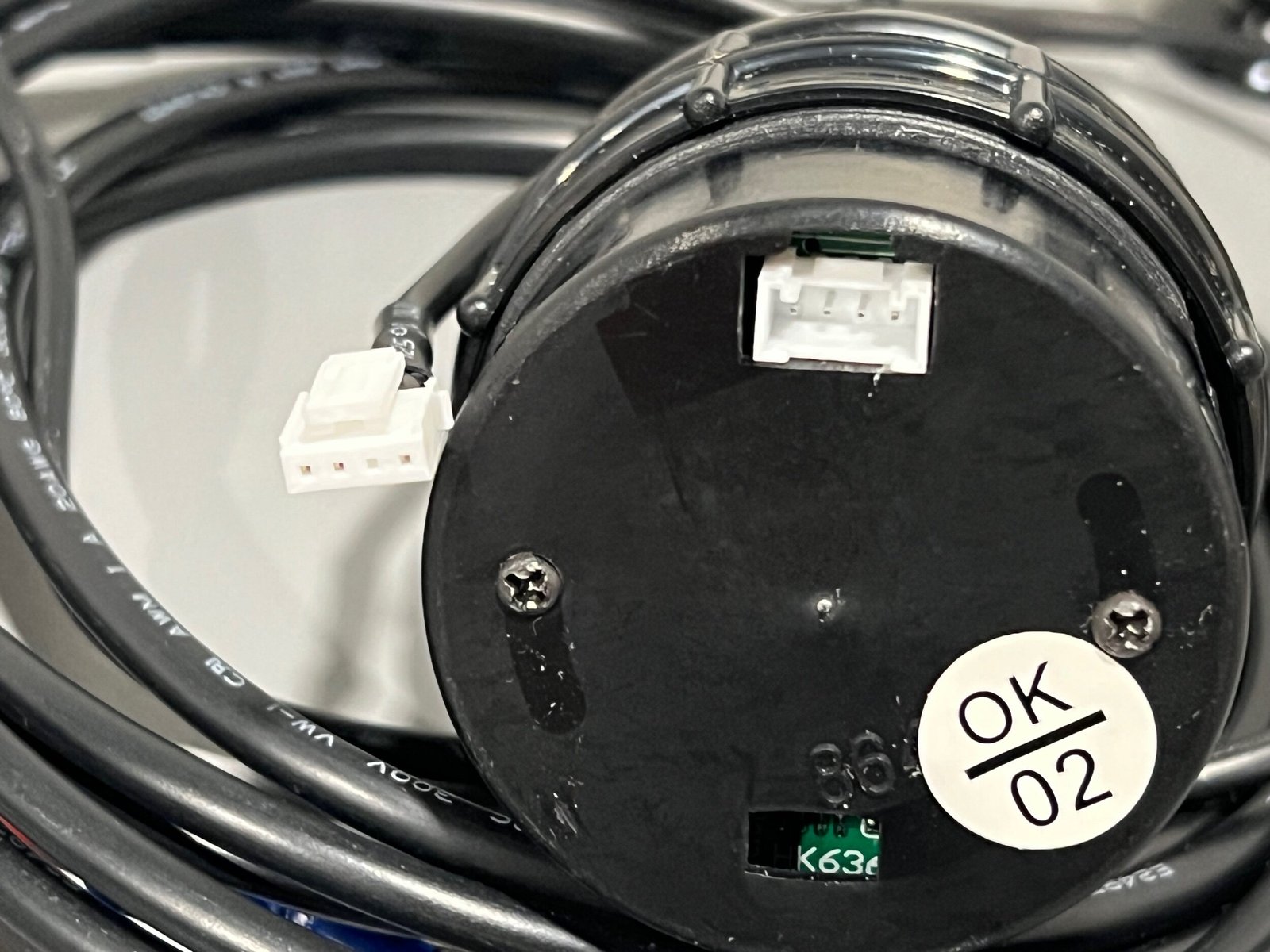

• Wired connectors for an OEM-plus quality install;

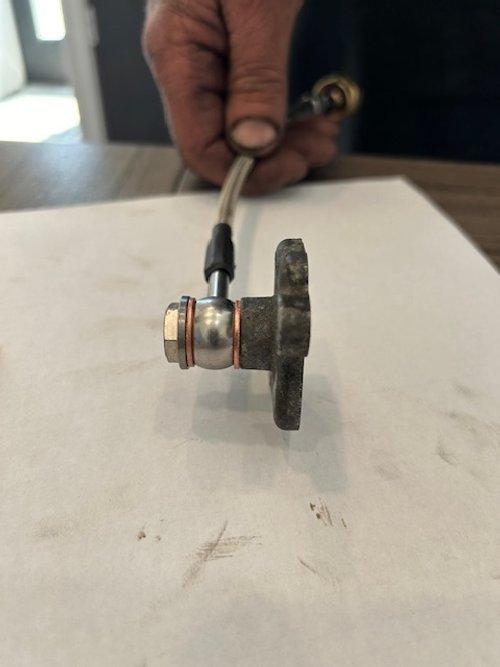

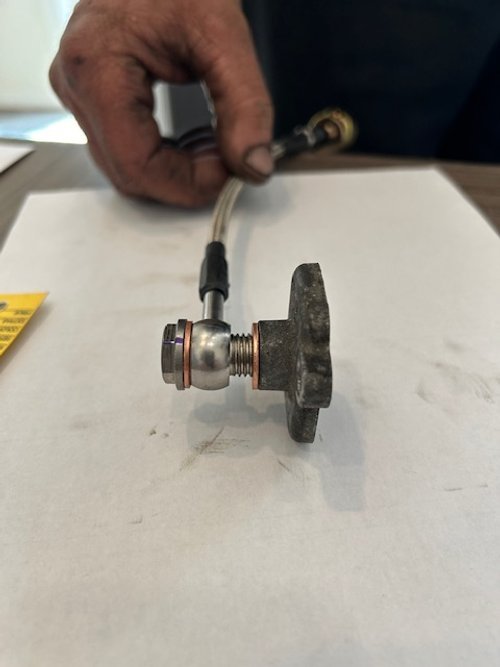

• Banjo and Banjo Bolt with copper washers;

• AN3 Stainless Steel braided oil hose and;

• AN to NPT connector.

Specs: Tighten Banjo Bolt to 15 Nm (11 lbf Ft). Washers are one time use and a set is included with each kit.

Prices in USD

Oil Pressure Gauge Kit $179.99

Inventory Status: In stock, ships in 3 – 5 days.

This includes the 52 mm Gauge and Banjo hose that allows a slim fitting to tap into the AMG block/head. The gauge comes with a sending unit. Soldering and wires required. Add a circuit pieces must tie into a switched 12V (e.g. cigarette lighter fuse).

M112/M113/M113K Oil Housing Access Cover & Gasket $49.99

Inventory Status: In stock, ships within 3 – 5 days.

This includes the cover and gasket that attaches to the block for the Oil Housing Tap. A required part for those that do not have the correct access port already installed in the M112/M113/M113K.

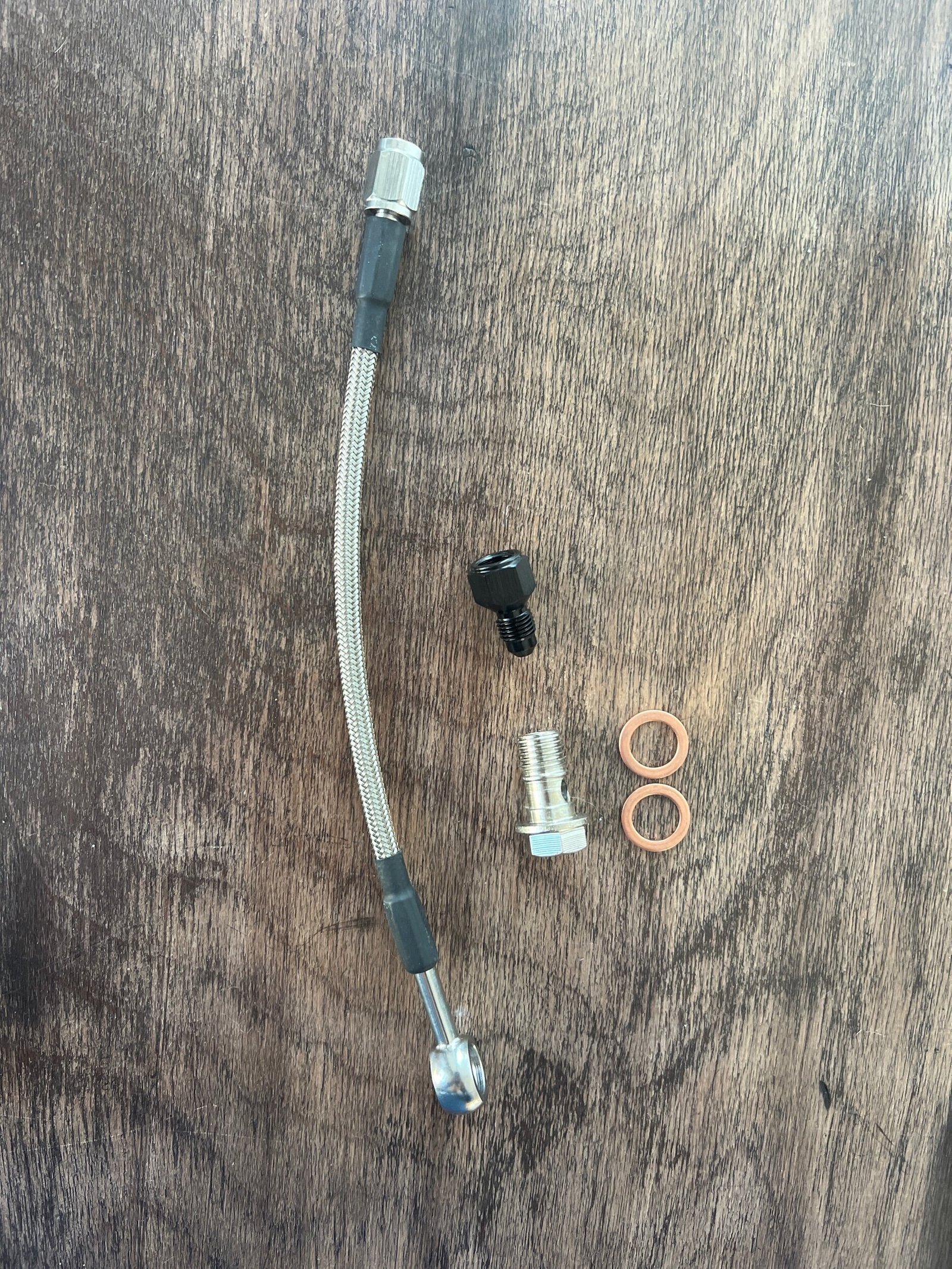

Oil Housing Tap $39.99

Inventory Status: In stock, ships within 3 – 5 days.

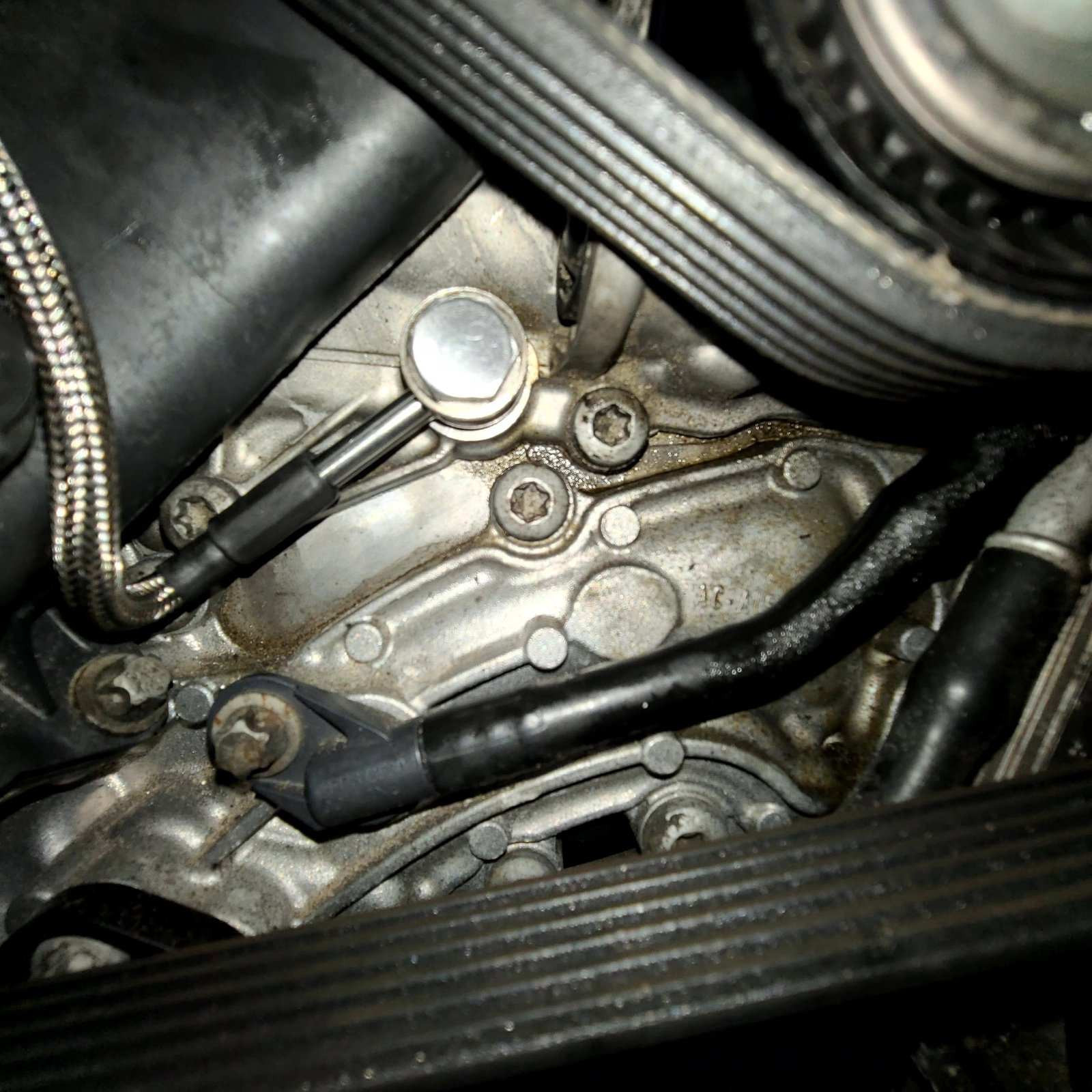

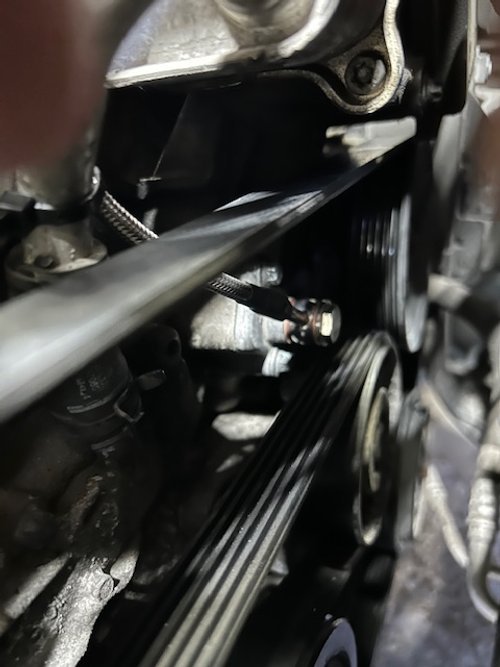

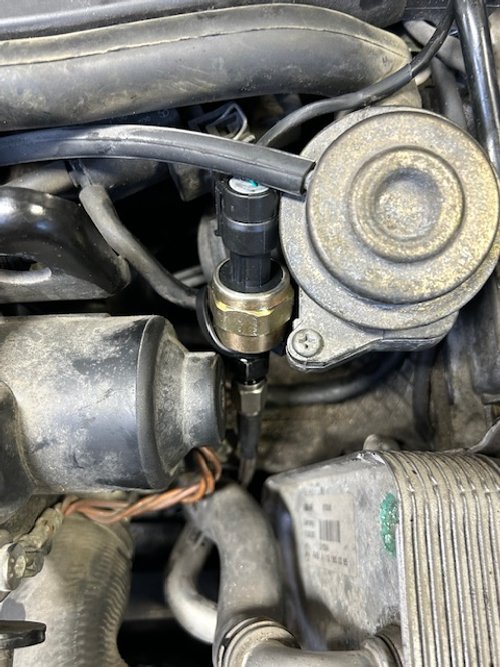

We’ve made the correct banjo and heat and tear resistant hose to allow an oil pressure sender to tap onto the oil filter housing or block CLEANLY! Professional grade crimp on fittings create a permanent leak proof seal! The form-fit banjo bolt clears the serpentine belt up to a full inch ensuring safe operation throughout the life of the tap!

Please email info@63motorsports.com for more questions.
