M156 Camshaft Adjuster [ Phaser ] Repair Street I

M156 Phaser Repair Street

Inventory Status: Ships in 5 working days.

Replacement Covers Series:

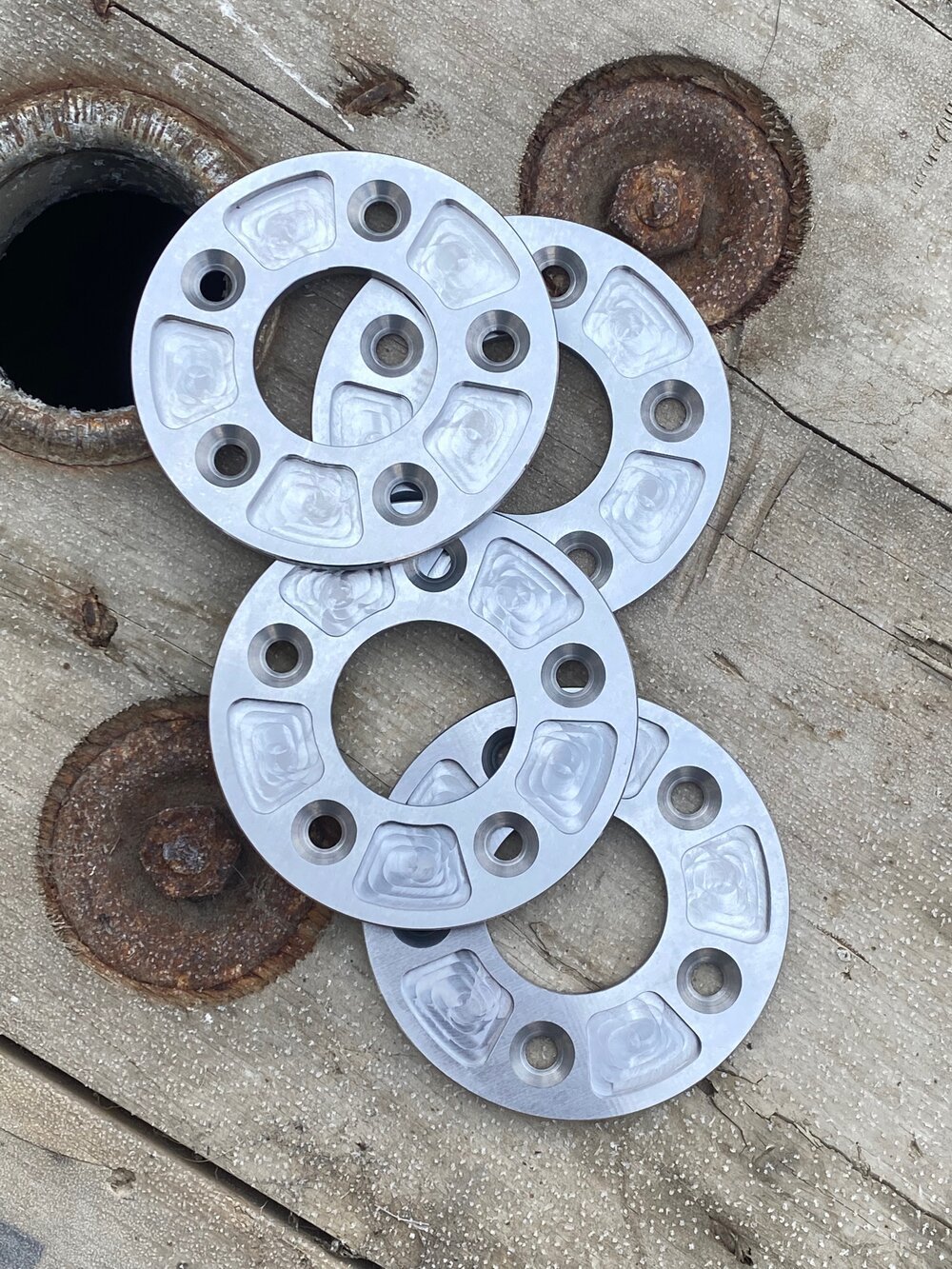

Skeleton Covers $97.00 each or $375.00 for 4 pcs

• Lighweight Phaser Covers available in Single, Double or Full [ 4 pcs ]

The added covers replaces all four cam adjuster/phaser covers due to damage, out-of-tolerance or as a precautionary while-you’re-in-there upgrade.

Replacement Lockplates Series:

Individual Locking Plates $199.00 each

• Choice of Intake or Exhaust

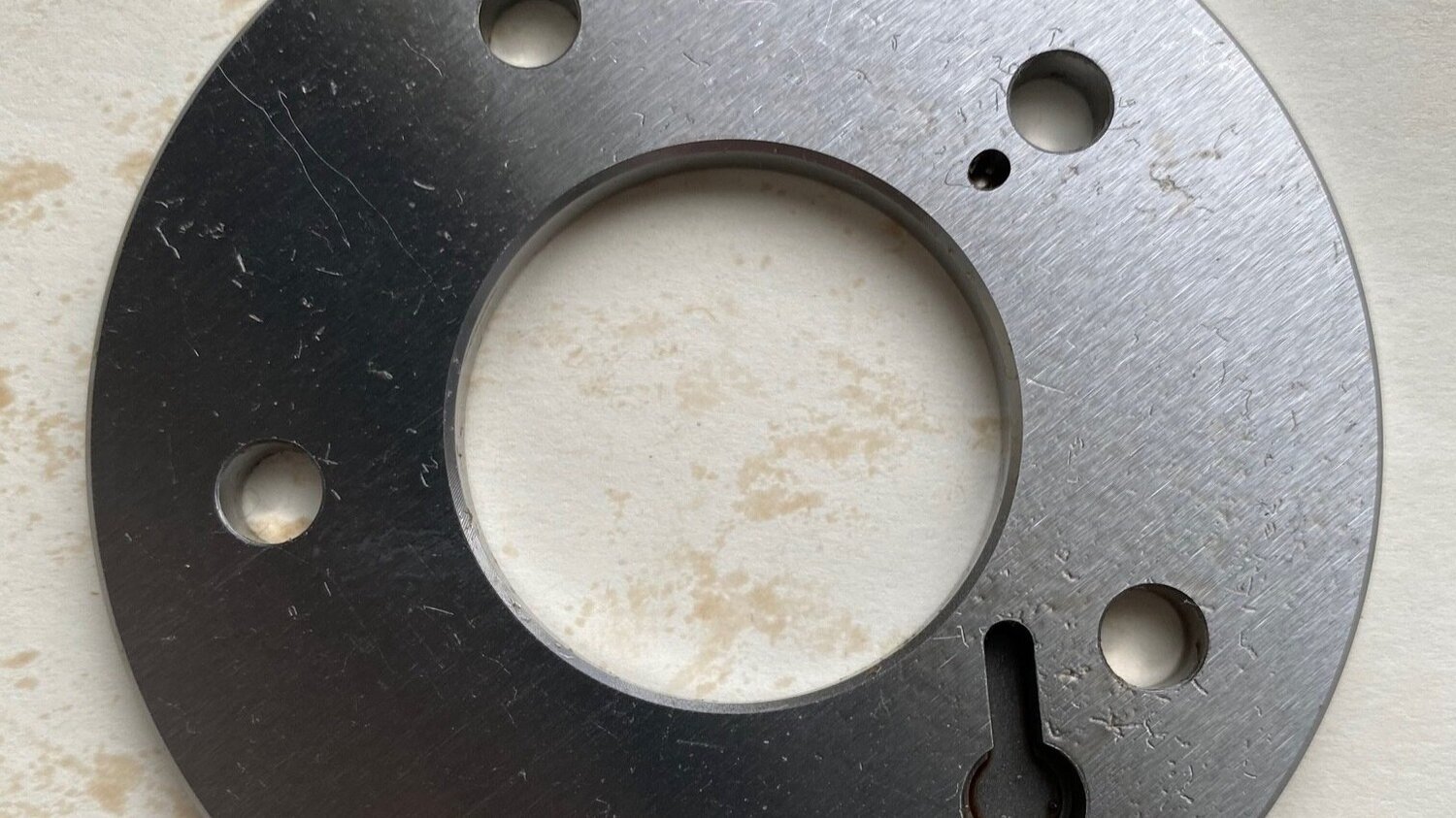

Replaces a worn locking plate on one phaser either Intake [ EIN ] or Exhaust [ AUS ] [ Pins and Springs not Included on Individual Pieces ]

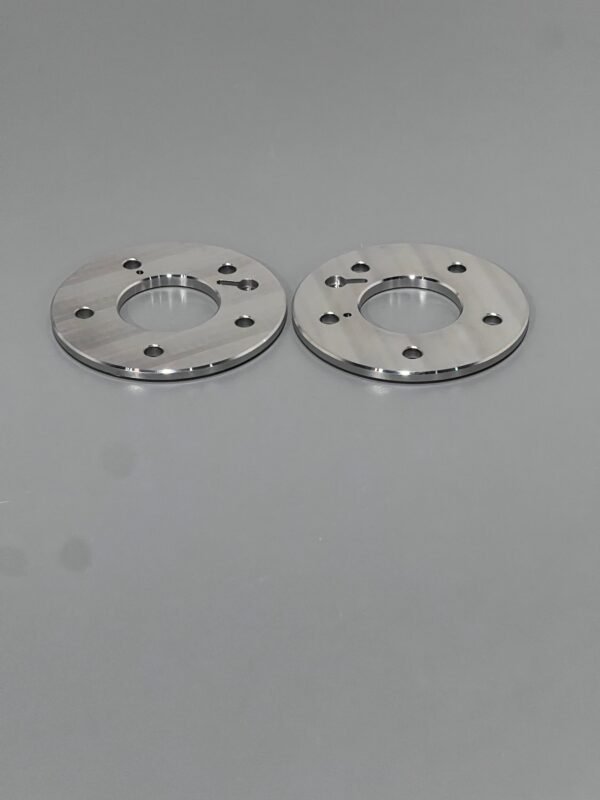

Single Bank [ 1 x EIN; 1 x AUS ] $385.00

Includes:

• Intake Lockplate x1

• Exhaust Lockplate x1

This product will rebuild the camshaft adjusters on one bank of the M156/M159 and does not carry any warranty. This set includes two replacement springs and two pins. The oil fill angle of the keyhole has been optimized from stock.

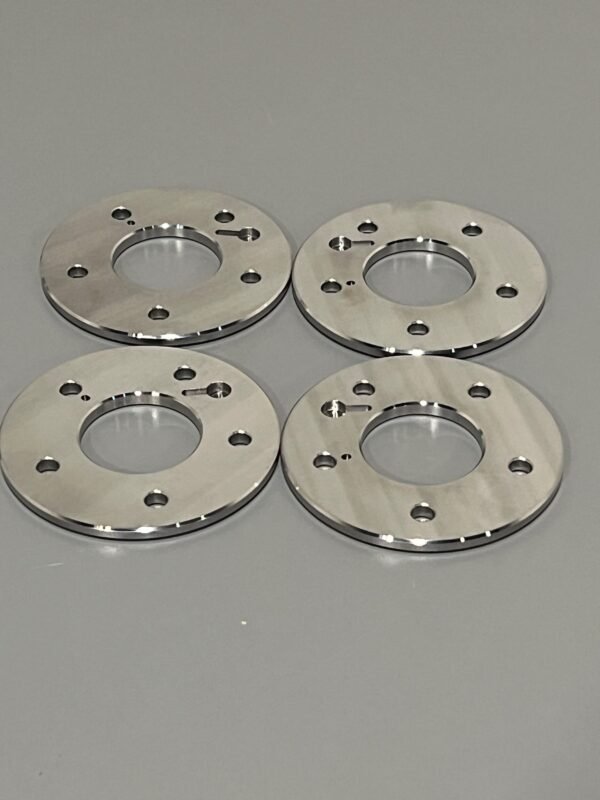

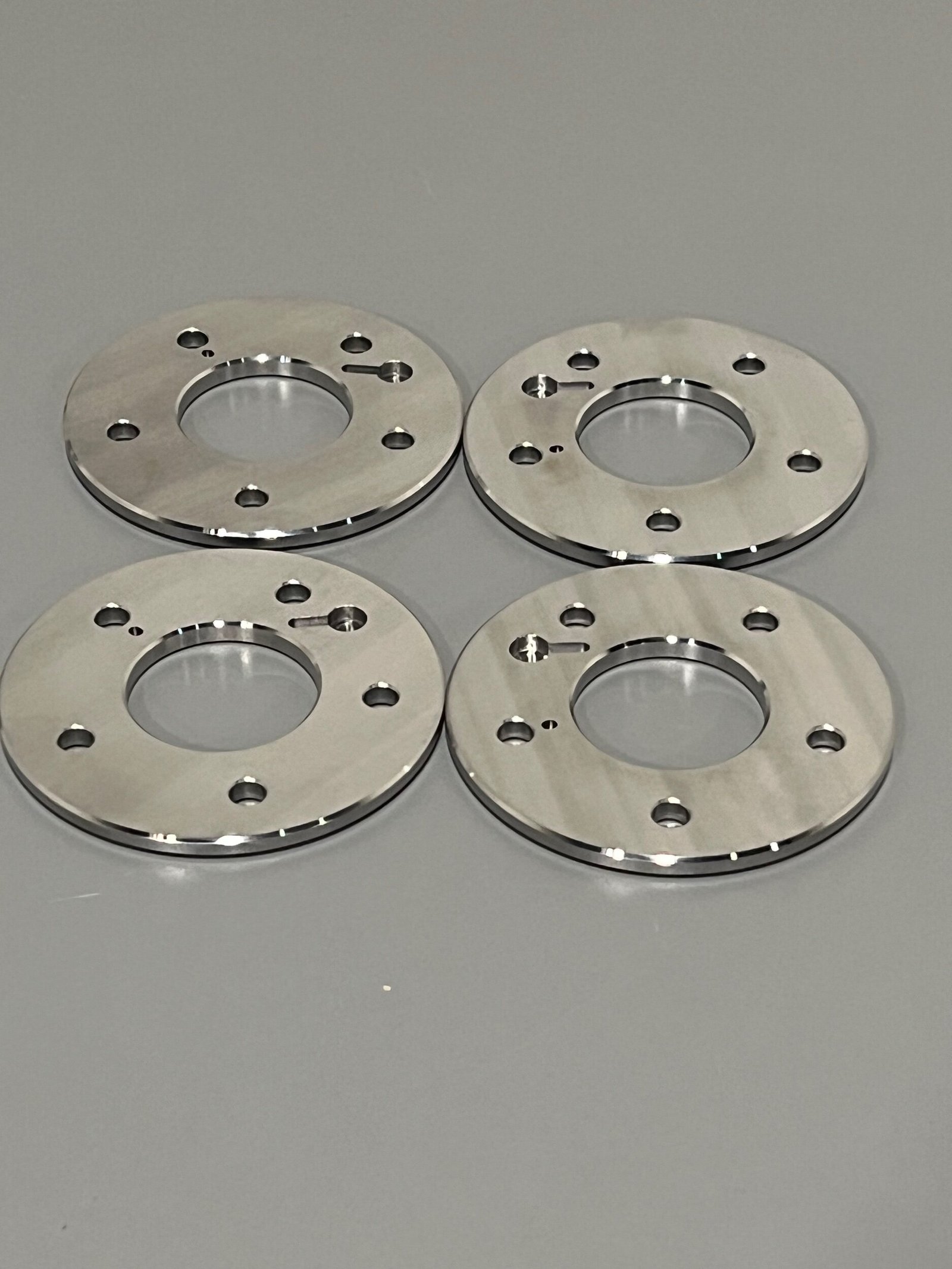

Full Set of Lockplates [ Both Banks ] $699.99

Includes:

• Intake [ EIN ] Lockplates x2

• Exhaust [ AUS ] Lockplates x2

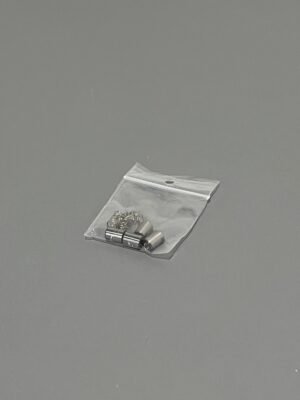

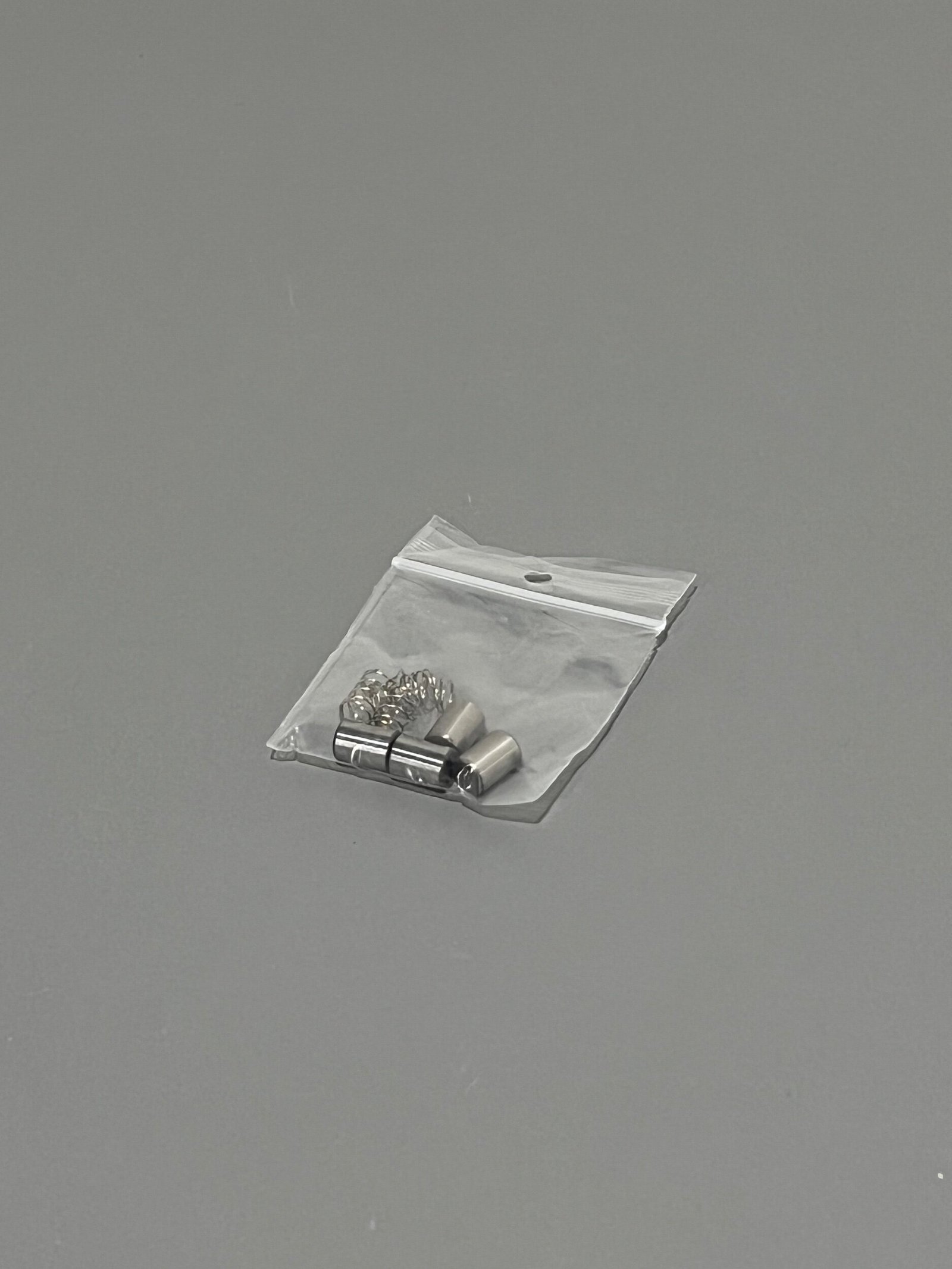

• Pins and Springs x4

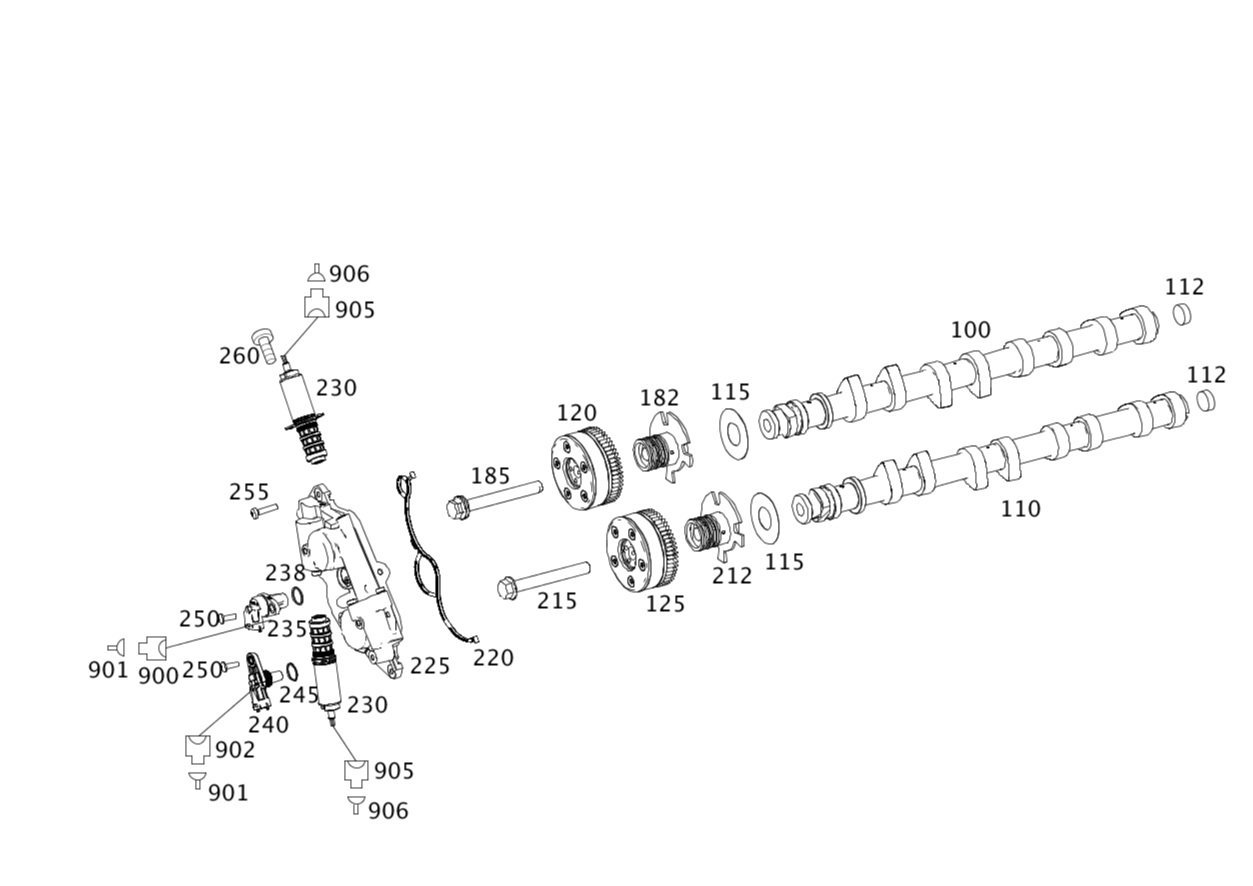

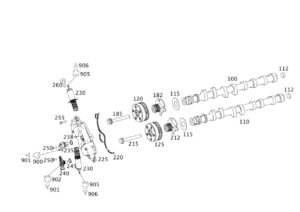

The set replaces worn Lockplates from the camshaft adjusters in both banks. Twice stronger than stock.Direct replacement to your stock M156 Camshaft Adjusters Lockplates. Springs are modified to compress less than early model and compress more than late model revisions. Rebuilds Item 120 and 125 in the exploded view. All repair variants keyhole oil fill angle has been optimized from stock and maintains oil flow avoiding detrimental cavitation.

Comprehensive Replacement Upgrades

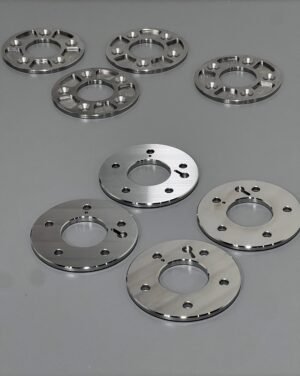

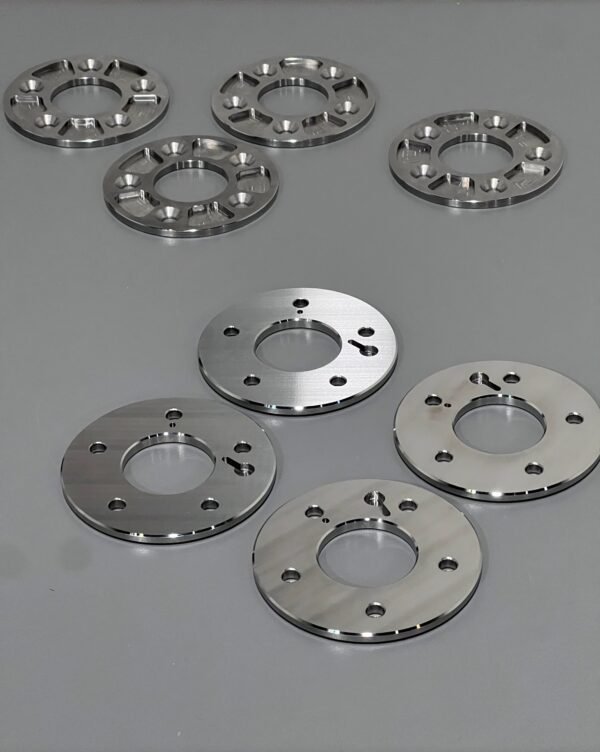

Skeleton Covers w/ Full Set of Lockplates [ Both Banks ] $970.00*

Inventory Status: Ships in 5 working days.

Includes:

• Intake [ EIN ] Lockplates x2

• Exhaust [ AUS ] Lockplates x2

• Pins and Springs x4

• Skeleton Covers x4

Save over $100 by purchasing the best comprehensive repair at the get go! Fully strengthened and lightened! The intensive and intricate parts rebuild of the M156 adjuster components offer weight reduction to the extreme when paired with 20 piece Titanium Hardware. Improved throttle feel and response PLUS oil retention properties creates extremely accurate phasing events of the variable valve system.

*Carries a non-transferrable up to 2 Year Limited Warranty when installed by a qualified dealer. See FAQ for details. See homepage for list of authorized dealers.

Need advice? Check out our Tech section HERE.

Need a competent shop for the job? We have several partners worldwide listed on our homepage [ Just scroll down ].

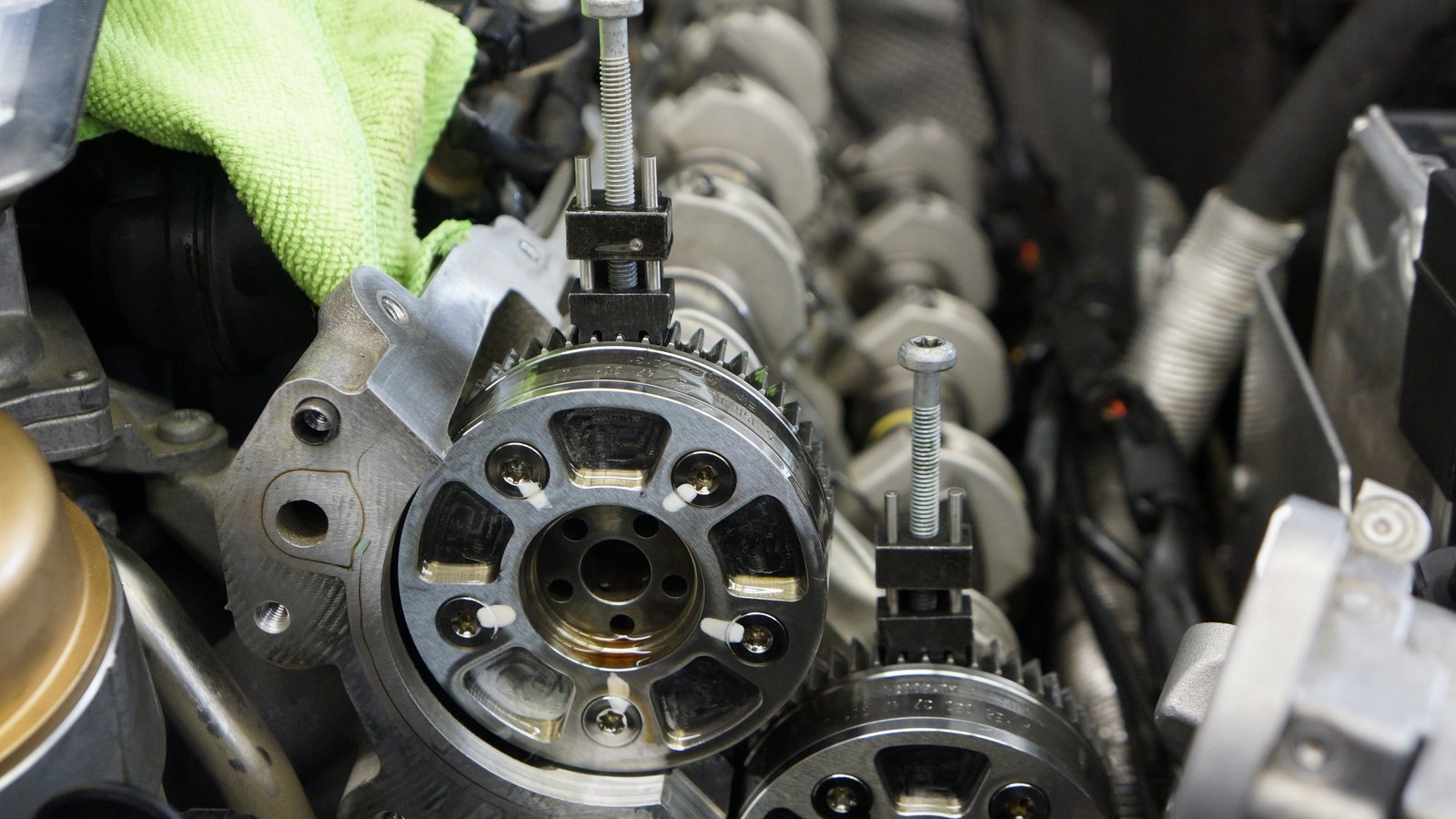

Locating Device / Timing Tool is required to perform cylinder head work, MB Part no. Gaskets and Washers are one time use and need to be replaced. Timing Tool Kit part no. W156589006100. Ensure you have a mechanic that is qualified to inspect the surrounding components and engine parts touched and replace worn components as needed or major damage, breakage of parts, hardware, or injury can occur.

YOU ARE ALSO REQUIRED TO REPLACE

• Valvetrain Gaskets (Prevents Leaks on Old Gaskets and replace Friction Washer which is One-Time Use)

• Camshaft Bolts ARP or Titanium (Replaces One-Time Use Bolts)

• Adjuster Assembly Bolts Titanium (Replaces One-Time Use Bolts)

THE FOLLOWING ARE RECOMMENDED

• M159 Black Series Tappets

• M156 Straight Headers

• Front Cam Cover Bolts ARP

• Camshafts Stage I+

• Adjuster Assembly Pulse Ring Replacements
