Name: Harness EXT Kit
SKU: 123
Availability: InStock

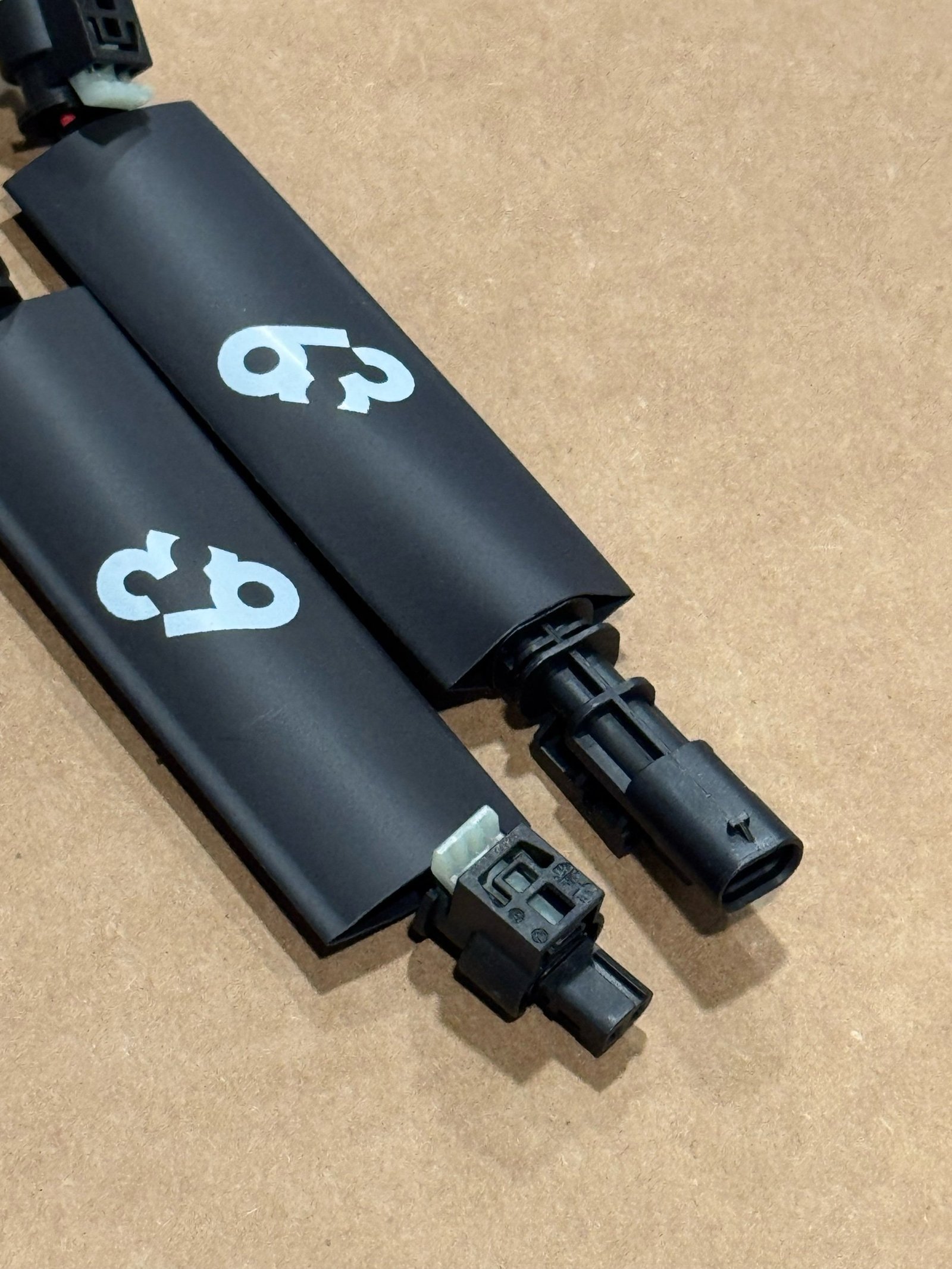

Harness EXT Kits for V8 AMG

Harness EXT Full Kit designed with the M157 in mind but also compatible with M177. Applicable to several other AMG engine models that utilizes the same three and two Pin sensors.

Inventory Status: In stock, ships in 3 – 5 days

3 Pin Cam Position Sensor Harness Individual Replacement $40.00

Single sacrificial harness for the top camshaft position sensor

2 Pin Adjuster Magnet Pigtail Harness Individual Replacement $40.00

Single OEM sacrificial harness for the front electromagnet sensor

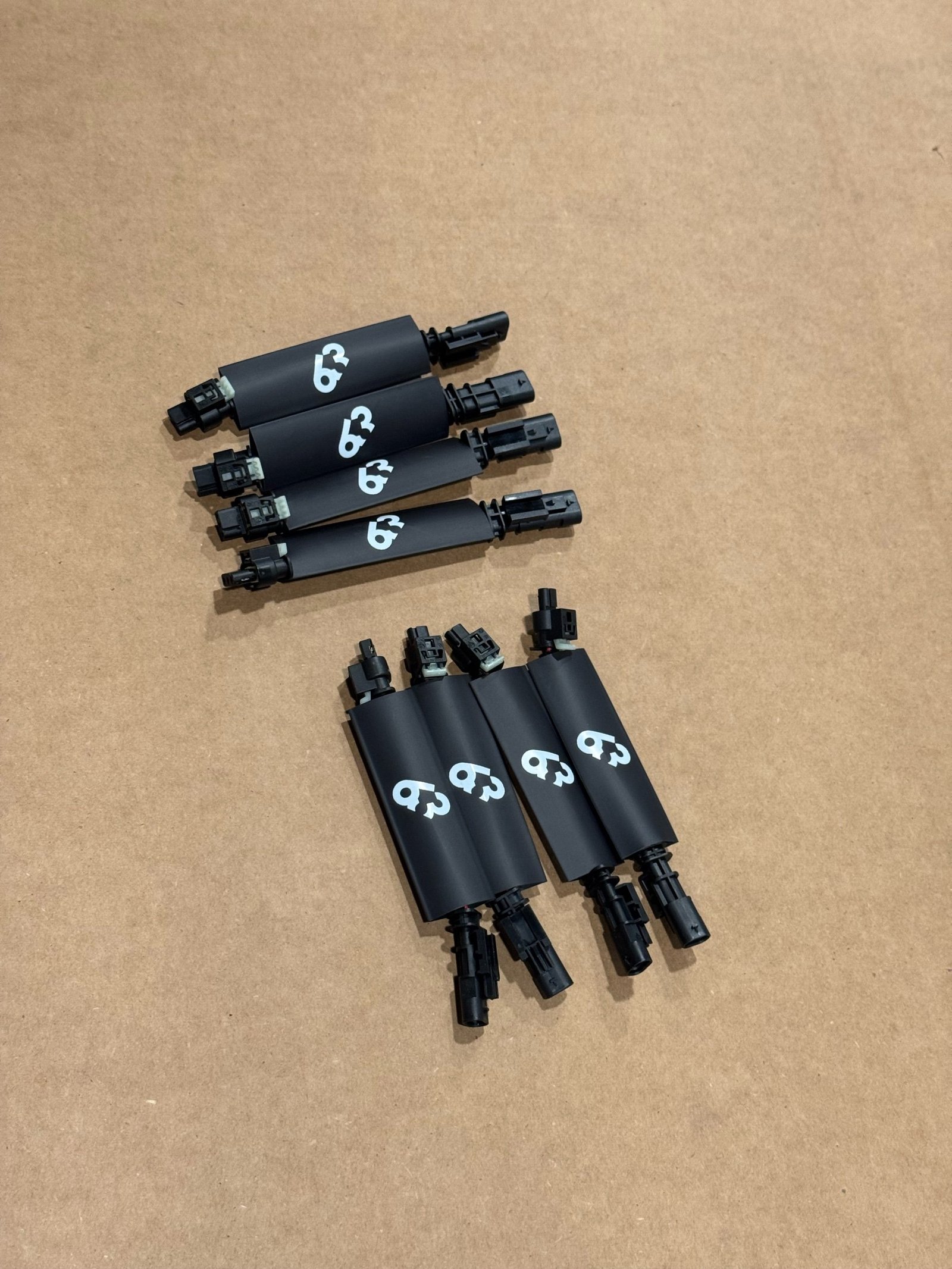

Harness EXT Kit Savings Bundle [ 4x of each ] $299.99

Four of each of 3 Pin and 2 Pin Harness EXT’s

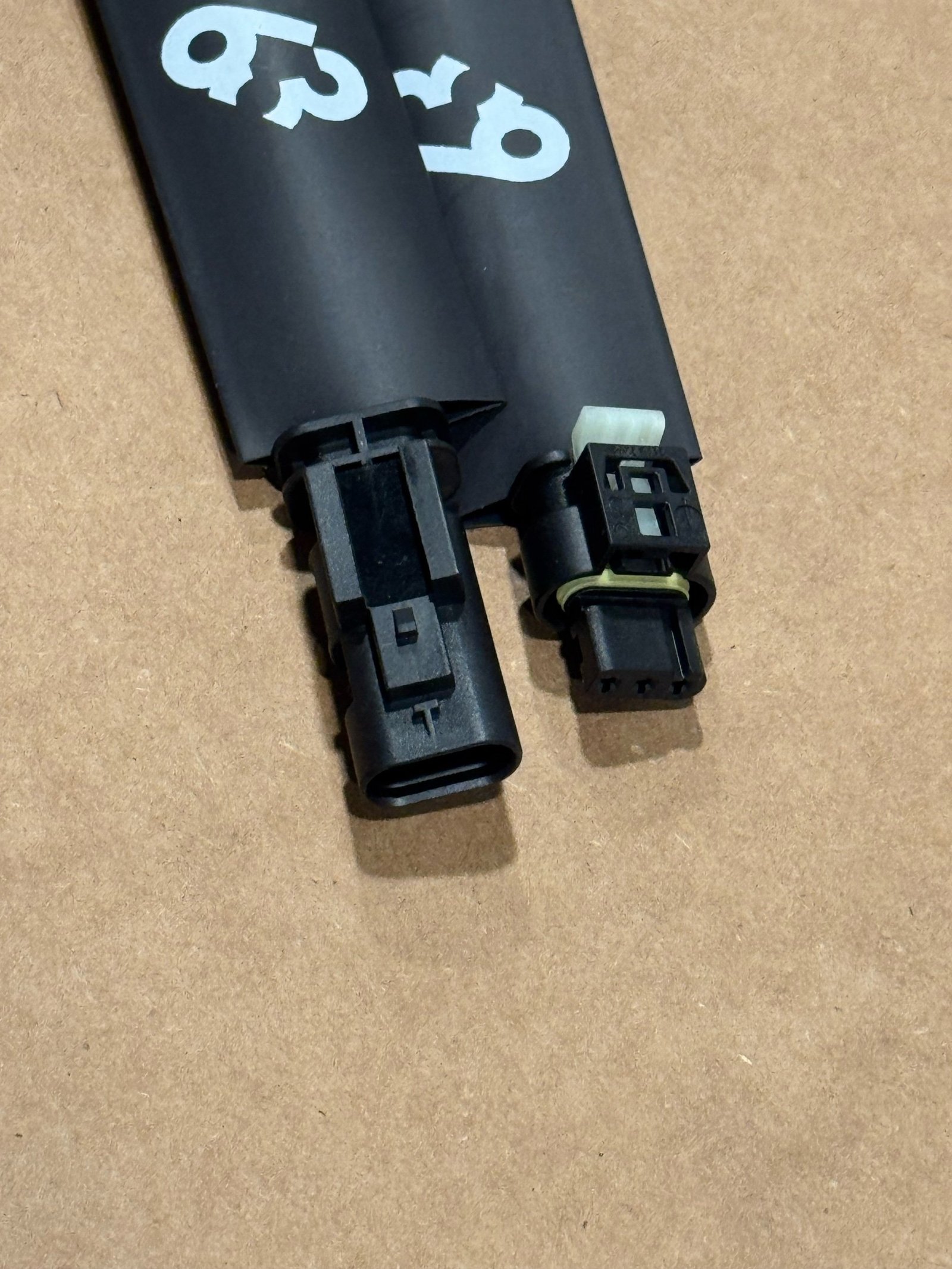

These are suitable to be used as a sacrificial harness to prevent damage from oil migration to the main engine harness and/or to the ECU. Prevent costly repairs of $10,000 to $15,000 from oil ingress damage. Utilizes genuine Mercedes-Benz-style three and two pin automotive grade waterproof connectors and high quality gauge wires.

“Sacrificial harnesses” should be inspected every 10,000 miles and replaced as required due to oil ingress or failure. Connectors may be reused if not faulty and should be cleansed using cleaners compatible with plastics and formulated for use on vehicle electronics and electrical systems.

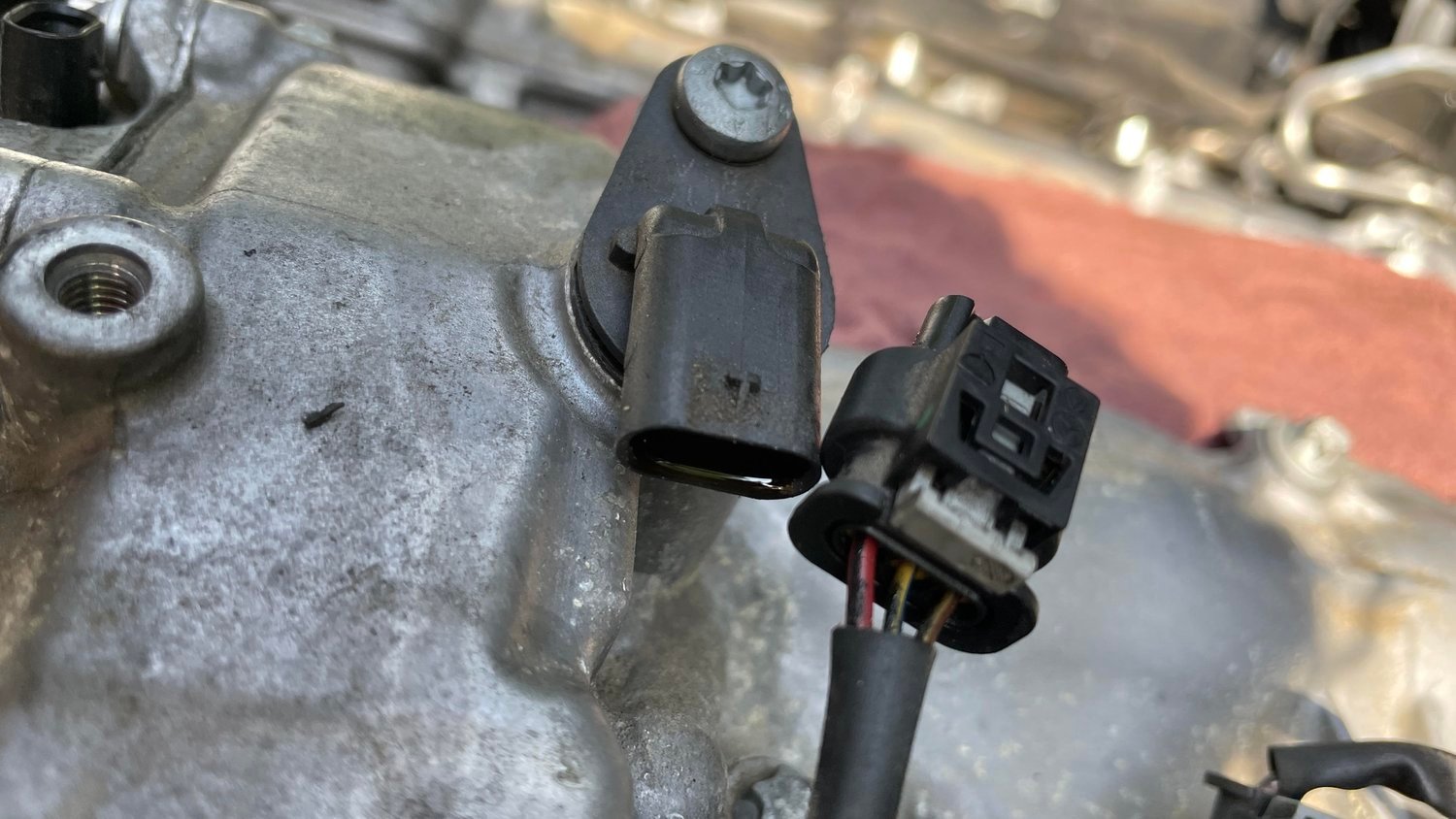

Front camshaft electromagnets (A 276 156 07 90) and top camshaft position sensors (A 276 905 10 00) should be inspected and replaced once connectors are contaminated with oil. Replacing the leaking sensors will prolong the life of the sacrificial harnesses. Sacrificial harnesses can be reused if oil contamination remains superficial and not causing engine trouble codes or engine trouble symptoms.

Harnesses are designed to be sacrificial to protect from a more extensive and more expensive repair. Due to the sensor’s design breakdown of the sensors are inevitable causing oil contamination to occur.

Prices in USD

Routine scheduled inspection and maintenance guarantees further costly damage for these AMG engines. Warranty on EXT harnesses are only valid on manufacturing defects within 7 days of purchase.

Applicable Mercedes Models:
