Billet Oil Dipstick for AMGs

Oil Dipstick Replacement for AMGs (Ordering by VIN is strongly recommended)

Inventory Status: In Stock, Ships 3-5 days.

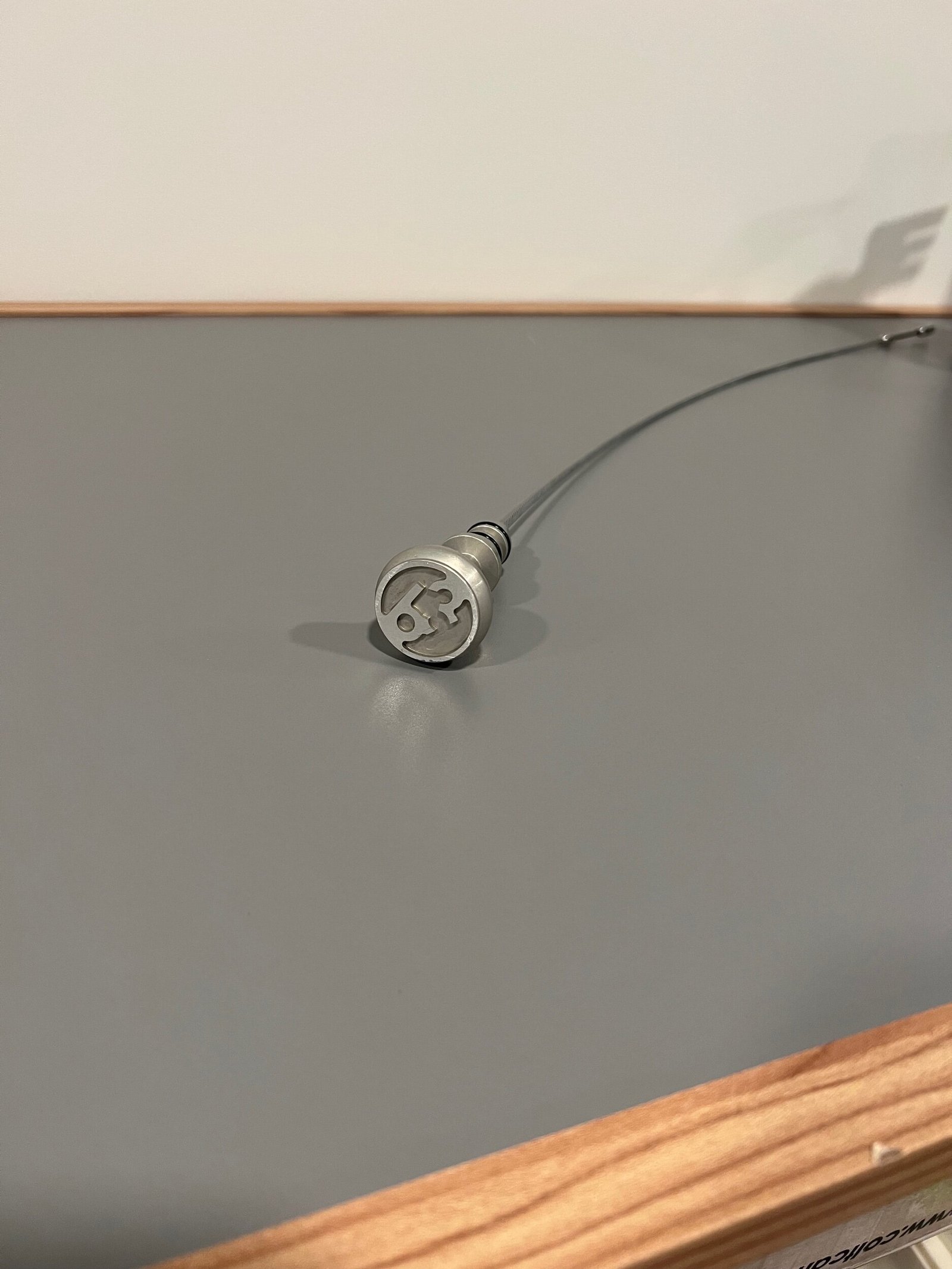

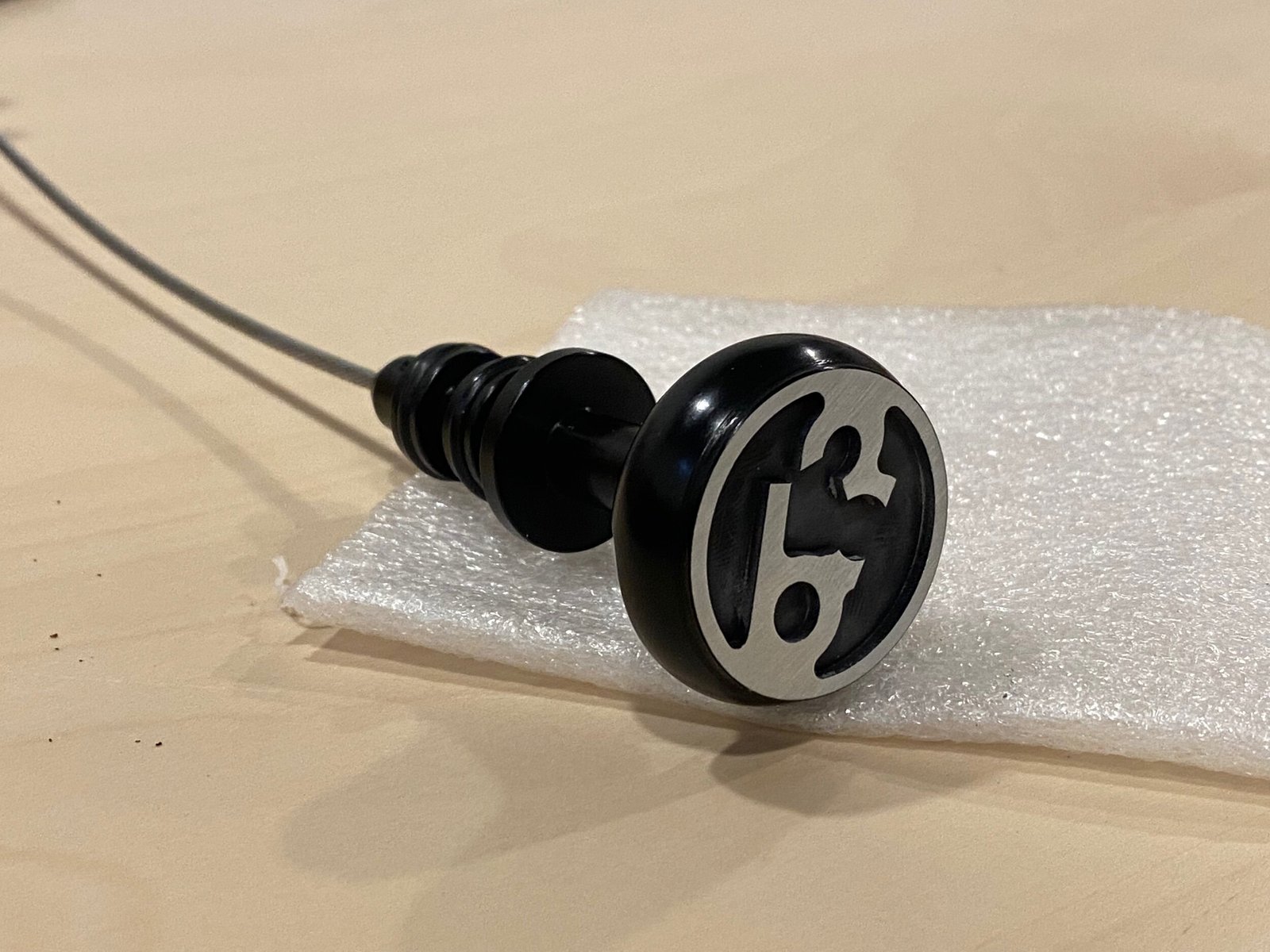

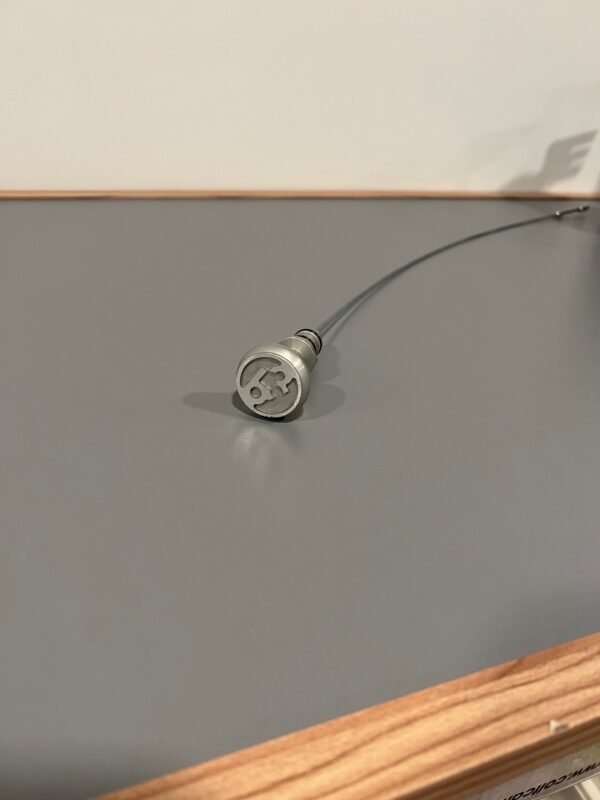

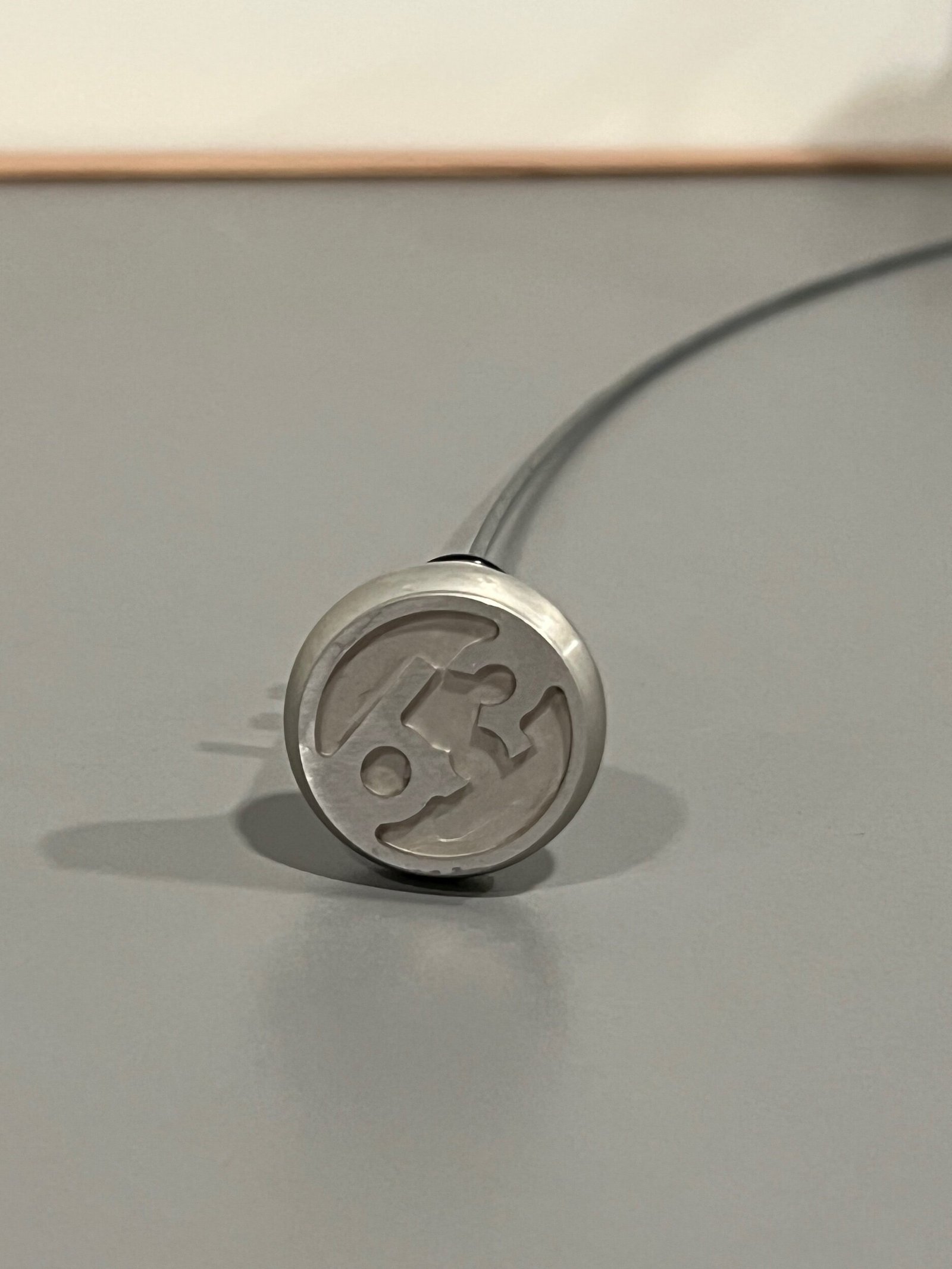

Milled out from solid billet T6 Aluminum with the logo unapologetically embossed for recognition. It could have been cast or injection molded plastic and probably would’ve made just as much sense, then realization hits…. the car driven is an AMG after all. Available in Anodized Black.

M156 Fitment specific to following $119.99:

Part no. A156 010 17 72 – Replaces Oil Dipstick for Model 204 / 207 / 209 / 211 / 212 / 219 / 230

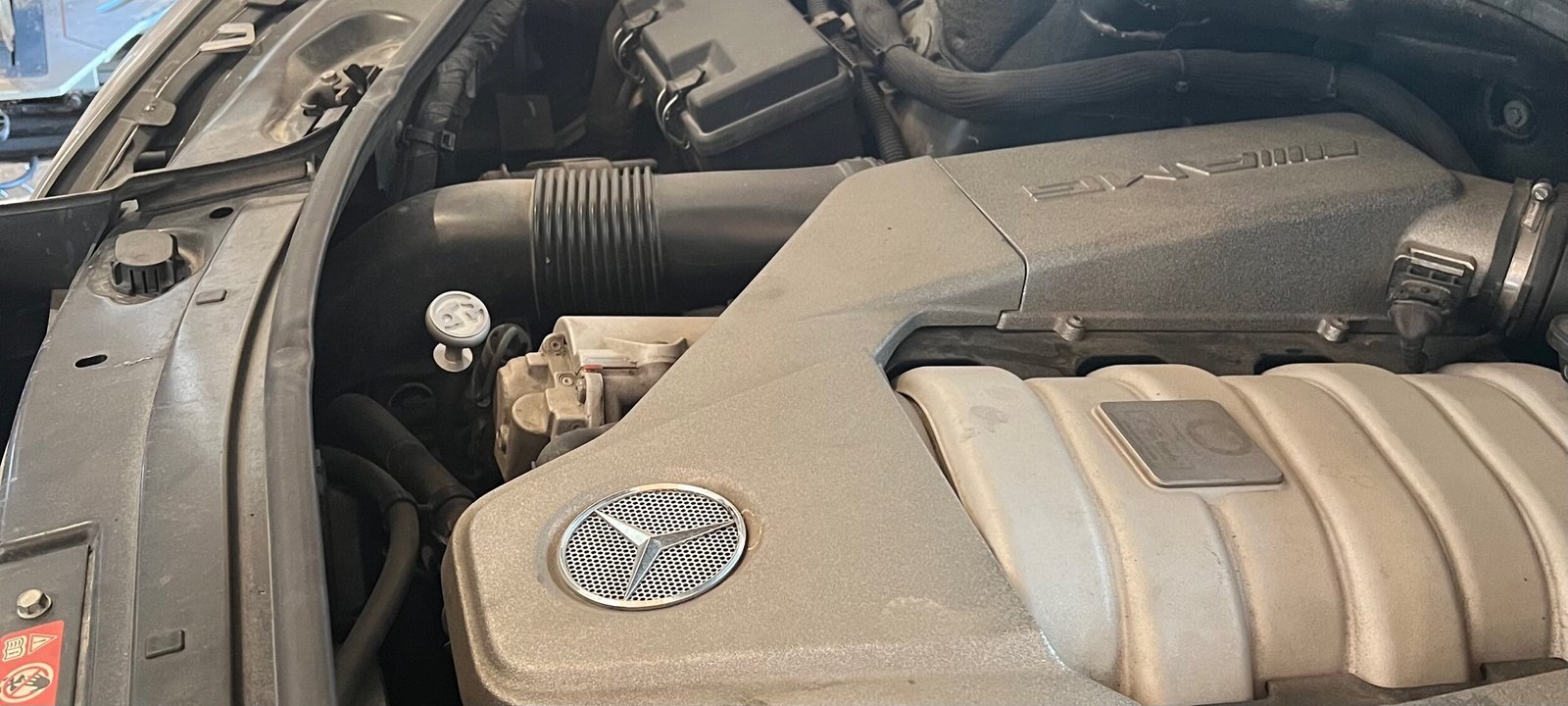

Part no. AMG15610 – FRONT MOUNT Replaces Dipstick mounted up front usually with the Black Handle e.g. 164 / 251

M157 Fitment specific to following $119.99:

Part no. A 157 010 32 00 – Replaces Oil Dipstick for Model 166 / 292

Part no. A 278 010 01 72 – Replaces Oil Dipstick for Model 212

Part no. A 278 010 10 72 – Replaces Oil Dipstick for Model 216/221

Part no. A 278 010 14 72 – Replaces Oil Dipstick for Model 218

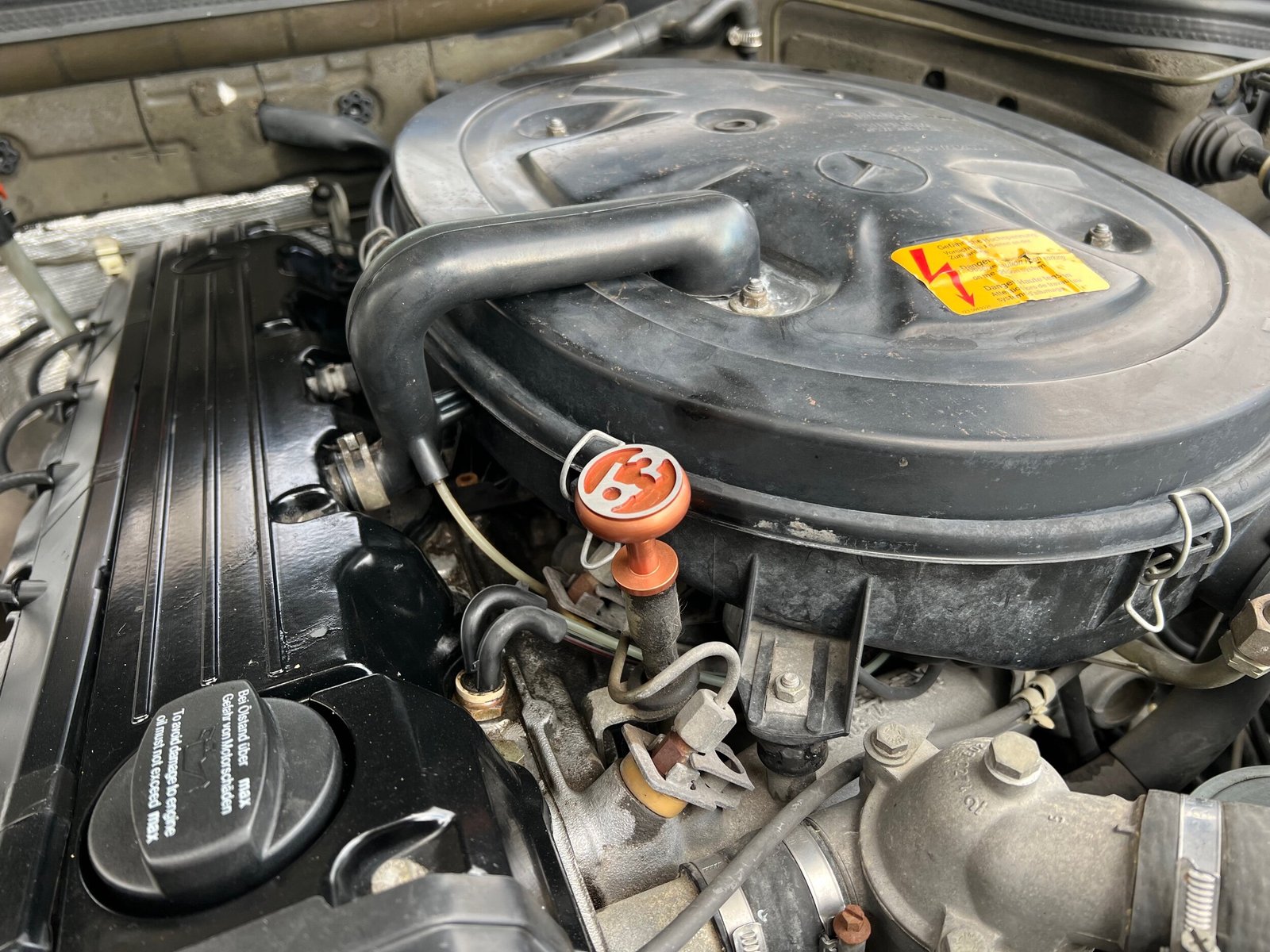

M103 Fitment specific to following $99.99:

Part no. A 102 010 04 72 / A 602 010 00 72

M177 205 C63 Fitment specific to following $139.99:

Part no. A 177 010 04 02

G63 2012 – 2018 w/ M157 specific to following $139.99:

Part no. A 278 010 11 72

Prices in USD

Oil Dipstick Custom (AMG) $209.99

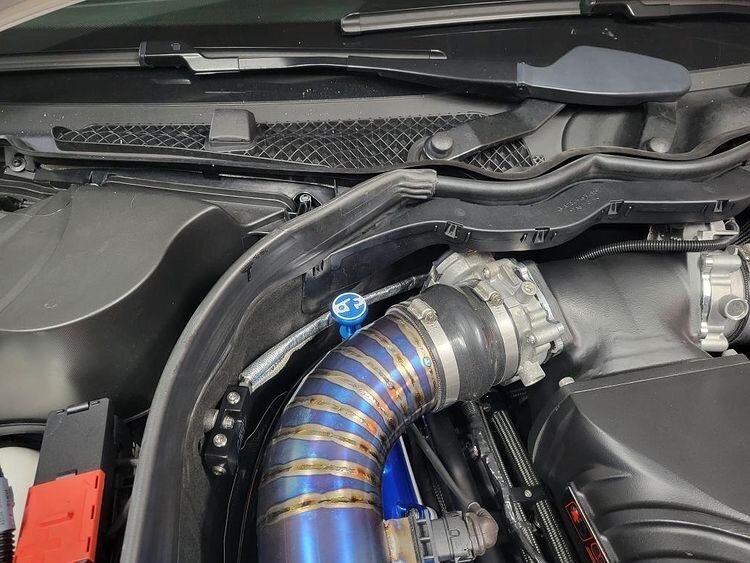

Available colour selection for M103/M156/M157 /M177 (Please email for more information). Add specification during checkout or please email info@63motorsports.com after ordering.

• Light Gray

• Blue

• Red

• Teal

• Purple

Refresh Kit $9.99

Includes 6 O-Rings with a 10 year shelf life to refresh old heat cycled o-rings.

Further Reading: Measuring Oil Levels

Proper readout procedure: With the engine at operating temperature turn off ignition and allow engine to sit for 5 minutes on a level surface.

Remove and clean dipstick just prior to the 5 minute mark and reinsert into the dipstick tube wait for 5 seconds and remove and read measurement.

Do NOT measure past 6 minutes. Oil continues to drain from the highest points of the oil gallery and cylinder head onto the oil pan and the level will read higher than specified.

Do NOT measure when engine is cold as oil has not experienced proper expansion at its specifically formulated operating temperatures. Engine tolerances are not at specifications when engine is cold.

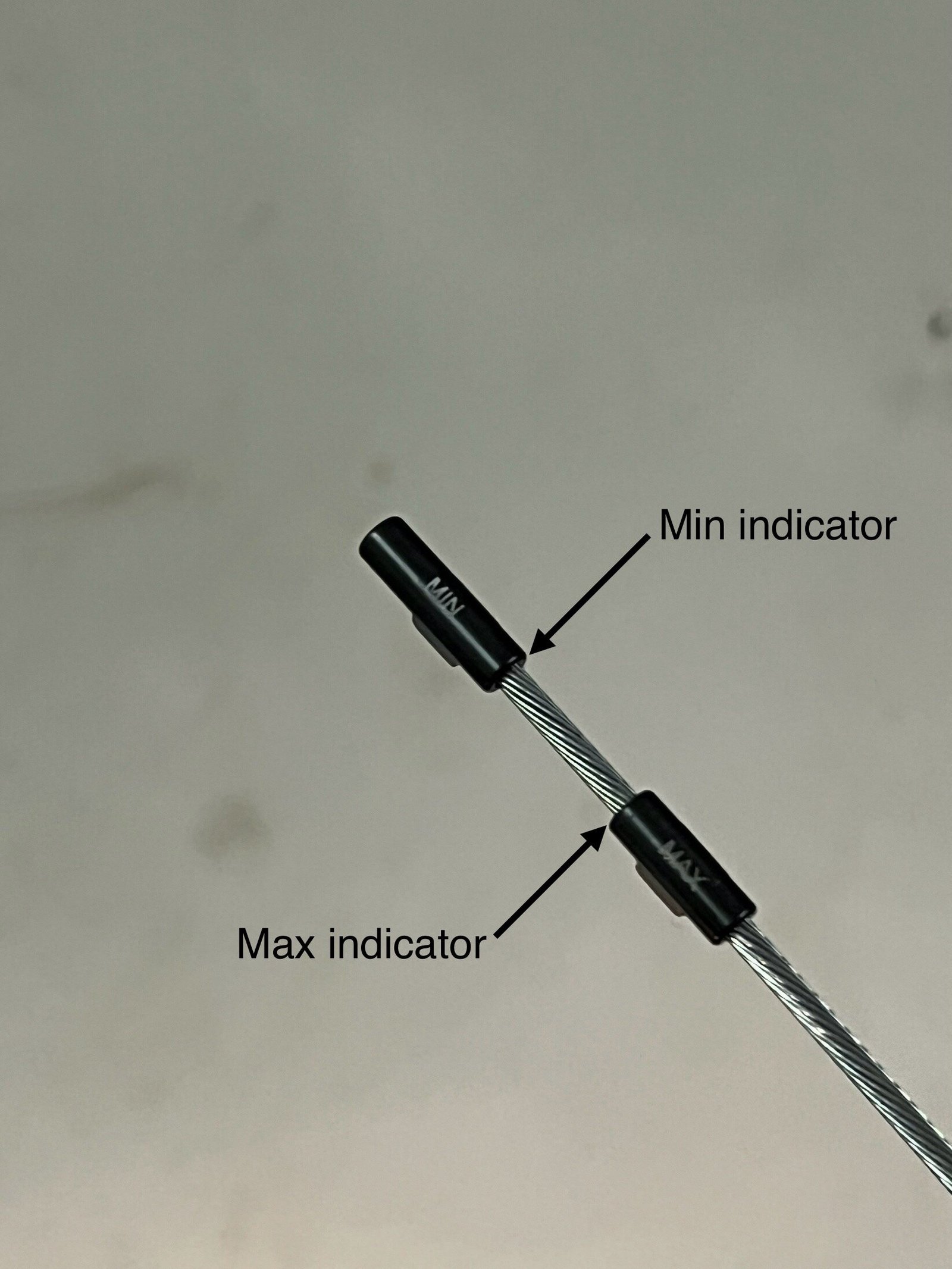

Refer to documented images for proper reading of dipstick. M156 USE ONLY: The midway point between the two aluminum pieces of the dipstick is the minimum readout of oil. Note that bottom end tip DOES NOT indicate minimum oil level required for the M156.
